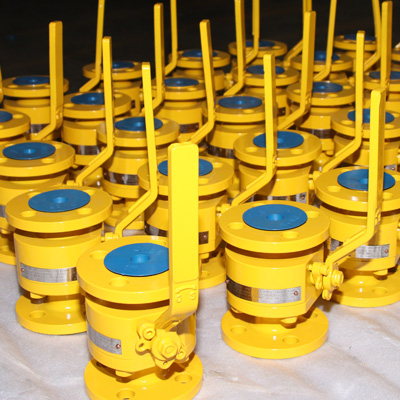

A105 Reduced ball valve 150LB 300LB 600LB RF is available in types of Two Piece Split Body and Three Piece Bolted Body. A105 Reduced ball valve 150LB 300LB 600LB RF Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Blow-out.
A105 Reduced ball valve 150LB 300LB 600LB RF Description:
A105 Reduced ball valve 150LB 300LB 600LB RF Design standard: API 6D.
Body material: WCB,WCC,CF8,CF8M,etc.
Nominal diameter: 2~24 Inch.
Pressure: 150LB,300LB,600LB.
End connection: RF,RTJ.
Face to face: ASME B16.10.
Test and inspection: API 598.
A105 Reduced ball valve 150LB 300LB 600LB RF Performance:
Size Ranges: 2” through 24”
Pressure Ratings: ANSI #150 to 600
Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials
Ends Connections: Flanged R.F, RTJ, Welded or Grooved
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
Full Port or Regular Bore
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -29℃~+200℃.
