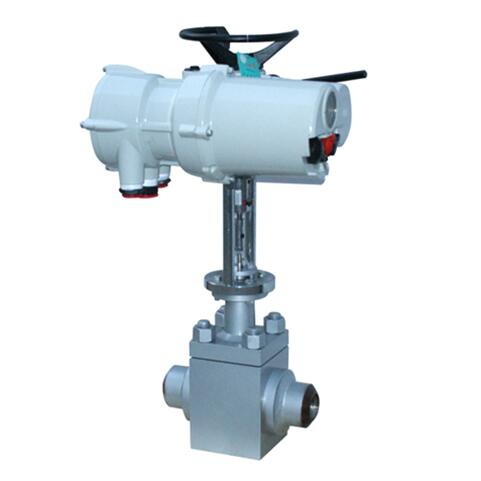

T968Y Electric high pressure difference control valve

Model:T968Y

  • Port size:DN65-250(2.5”-10”)
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-29~425℃
  • Body material:WCB WC6 WC9 CF8 CF3 CF8M CF3M
  • Connection:Flanged,butt weld is optional
  • Position type:Input signal increase, valve close or opposite
  • Characteristic:Linear, Equal percentage
  • Voltage:AC220,AC380
  • Other:Pneumatic actuator is optional
T968Y Electric high pressure difference control valve introduction
T968Y electric high pressure difference control valve is composed of direct stroke electric actuator and low flow resistance straight through cage seat control valve..The electric actuator of T968Y electric high pressure difference control valve is an electronic integrated structure, with servo amplifier, input control signal (4-20madc or 1-5vdc) and power supply can control the valve opening, to achieve the pressure, flow, liquid level, temperature and other operating parameters.T968Y electric high pressure difference control valve is characterized by sensitive movement, simple connection, large flow, small volume and high adjustment accuracy.The control precision and performance of DKZ model are obviously improved.

T968Y Electric high pressure difference control valve Parameter
Trim features: multi-level, multi-hole cage
balanced trim structure
Body type: straight-through type
Bonnet type: standard type
heat dissipation type
Flow characteristic: equal percentage
linear
Size: DN65-250(2.5”-10”)
Pressure class: PN1.6、4.0、6.3、10Mpa(ANSI 150、300、600LB)
Leakage class: ASME B16.104 Ⅴ(standard type metal seat)
Pipe connection type: flange type
butt welding type
Applicable temperature range: less than 420C°
Actuator type: pneumatic diaphragm actuator
pneumatic piston actuator
electric actuator
