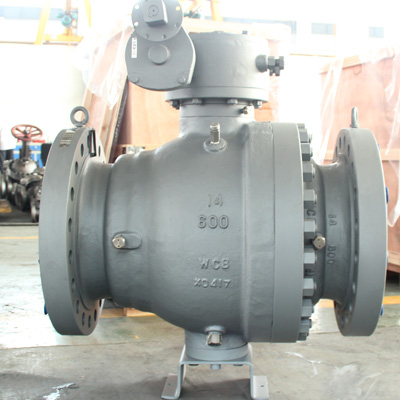

Two Piece Trunnion mounted Reduced ball valve

Model:

  • Port size:2"~24" (DN50~DN600)
  • Pressure:150 lb~2500 lb (PN16~PN420).
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-46~200℃
  • Body material:WCB,WCC,CF8,CF8M,etc.
  • Connection:Flanged
  • Position type:On-off type
  • Characteristic:2 PCS
  • Voltage:/
  • Other:Trunnion mounted Reduced ball valve
Two Piece Trunnion mounted Reduced ball valve is available in types of Two Piece Split Body and Three Piece Bolted Body. Two Piece Trunnion mounted Reduced ball valve Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Blow-out.

Two Piece Trunnion mounted Reduced ball valve Description:

Two Piece Trunnion mounted Reduced ball valve Design standard: API 6D.
Body material: WCB,WCC,CF8,CF8M,etc.
Nominal diameter: 2~24 Inch.
Pressure: 150LB,300LB,600LB,900LB,1500LB,2500LB.
End connection: RF,RTJ.
Face to face: ASME B16.10.
Test and inspection: API 598.

Two Piece Trunnion mounted Reduced ball valve Performance:

Size Ranges: 2” through 24”
Pressure Ratings: ANSI #150 to 2500
Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials
Ends Connections: Flanged R.F, RTJ, Welded or Grooved
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
Full Port or Regular Bore
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+200℃.
