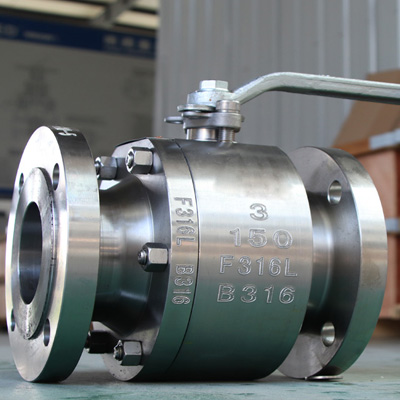

F304 F316 F316L Forged Floating Ball Valve is available in types of One Piece Uni-body, Two Piece Split Body and Three Piece Bolted Body. F304 F316 F316L Forged Floating Ball Valve Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Blow-out.
F304 F316 F316L Forged Floating Ball Valve Description:
F304 F316 F316L Forged Floating Ball Valve Design standard: API 6D.
Body material: ASTM F304 F316 F316L .
Nominal diameter: 1/2~4 Inch.
Pressure: 600LB,900LB,1500LB,2500LB.
End connection: RTJ.
Face to face: ASME B16.10.Test and inspection: API 598.
F304 F316 F316L Forged Floating Ball Valve Performance:
Size Ranges: 1/2” through 4”
Pressure Ratings: ANSI #150 to 600
Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials
Ends Connections: Flanged R.F, RTJ, Welded or Grooved
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
Full Port or Regular Bore
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+200℃.
