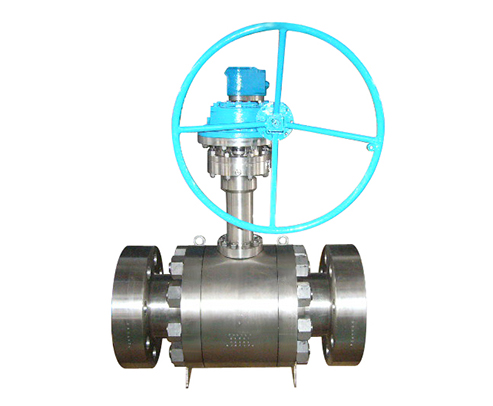

Cryogenic Trunnion Mounted Ball Valve description:
Cryogenic Trunnion Mounted Ball Valve is available in types of Two Piece Split Body and Three Piece Bolted Body. Cryogenic Trunnion Mounted Ball Valve Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Blow-out.
Cryogenic Trunnion Mounted Ball Valve feature:
Design standard: API 6D.
Body material: LCB/LCC/LF2/CF8/CF8M/CF3M,etc.
Nominal diameter: 1/2~24 Inch.
Pressure: 150LB,300LB,600LB,900LB,1500LB,2500LB.
End connection: RF,RTJ.
Face to face: ASME B16.10.
Test and inspection: API 598.
Cryogenic Trunnion Mounted Ball Valve Performance:
Size Ranges: 1/2” through 24”
Pressure Ratings: ANSI #150 to 2500
Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials
Ends Connections: Flanged R.F, RTJ, Welded or Grooved
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
Cryogenic Trunnion Mounted Ball Valve is Full Port or Reduced Bore
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -196℃~+200℃.
