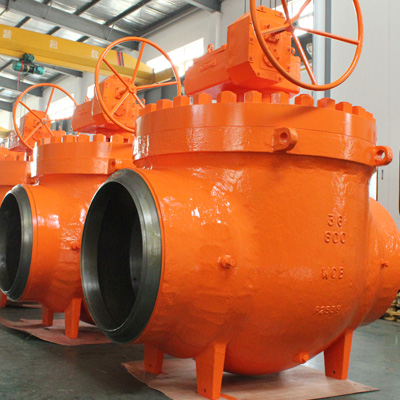

Big size Top entry ball valve BW

VALVE

contact us

SHANGHAI HUIXUAN VALVE

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：2"~24" (DN50~DN600)
Pressure：150LB 300LB 600LB
Medium：Water,steam,oil,gas,etc.
Temperature :-29～200℃
Body material：WCB,WC6,WC9,CF8,CF8M,etc.
Connection：BW
Position type：On-off type
Characteristic：Top entry
Voltage：/
Other：

Big size Top entry ball valve BW Description:

Big size Top entry ball valve BW Design standard: API 6D.
Body material: ASTM A105 LF2 F304 F316 F316L.
Nominal diameter: 2~24 Inch.

Pressure:1500LB,2500LB.
End connection: RTJ.
Face to face: ASME B16.10.
Working temperature: -29℃~+200℃.
Test and inspection: API 598.

Big size Top entry ball valve BW Performance:

Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 lb~2500 lb (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+200℃.
