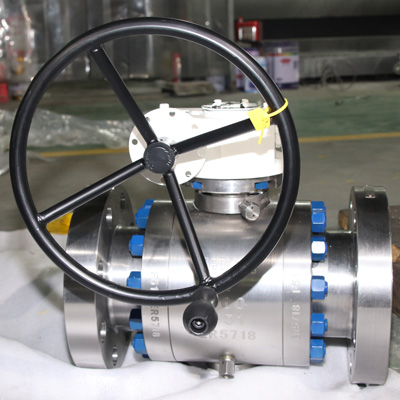

Duplex steel ball valve (F51/S31803/2205/CD3MN/4A)

Model:

  • Port size:1/2~24 Inch.
  • Pressure:150LB~2500LB.
  • Medium:Water,oil,steam,gas
  • Temperature :-46~200℃
  • Body material:F51/S31803/2205/CD3MN/4A Duplex Steel
  • Connection:RF,RTJ
  • Position type:On-off type
  • Characteristic:Vendor list supplier: CNPC,ADNOC,ADCO,KOC,NIGC
  • Voltage:/
  • Other:Certificates:CE,ISO,API6A,API6D,API16C,SIL
Duplex steel ball valve (F51/S31803/2205/CD3MN/4A) description:
Duplex steel ball valve (F51/S31803/2205/CD3MN/4A) is available in types of Two Piece Split Body and Three Piece Bolted Body. Duplex steel ball valve (F51/S31803/2205/CD3MN/4A) Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Blow-out.

There are several grades in this category of duplex steel ball valve as well like UNS 31803 (F51), UNS 32205 (F60) Alloy 2205, UNS S32550 (F61), UNS S 32750 (F53), Alloy 2507 and UNS 32760 (F55). We have more than one decade of experience for our product range.


Duplex steel ball valve (F51/S31803/2205/CD3MN/4A) feature:
Duplex steel ball valve (F51/S31803/2205/CD3MN/4A) Design standard: API 6D.
Body material: 2205 S31803 A182 F51 4A
Nominal diameter: 1/2~24 Inch.
Pressure: 150LB,300LB,600LB,900LB,1500LB,2500LB.
End connection: RF,RTJ.
Face to face: ASME B16.10.
Test and inspection: API 598.

Duplex steel ball valve (F51/S31803/2205/CD3MN/4A)  Performance:
Size Ranges: 1/2” through 24”
Pressure Ratings: ANSI #150 to 2500
Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials
Ends Connections: Flanged R.F, RTJ, Welded or Grooved
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
Duplex steel ball valve (F51/S31803/2205/CD3MN/4A) is Full Port or Reduced Bore
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+200℃.

  • Different Material ball valve and equivelent grades

    Ball valve name DESCRIPTION UNS GRADE FORGING CASTING BARSTOCK
    WCB A105 Carbon steel ball valve Carbon Steel K30504 A105 A216 WCB A105
    LCB LF2 Low temperature ball valve Low Temp Carbon K03011 A350 LF2 A352 LCB A350 LF2
    F60 Steel ball valve High Yield Steel K03014 A694 F60 - A694 F60
      3 1/2 Nickel Steel K32025 A350 LF3 A352 LC3 A350 LF3
      5 Chrome,
     1/2 Moly
    K41545 A182 F5 A217 C5 A182 F5
    WC6 F11 High temperature ball valve 1 1/4 Chrome,
     1/2 Moly
    K11597 A182 F11 A217 WC6 A182 F11
    WC9 F22 High temperature ball valve 2 1/4 Chrome,
    1 Moly
    K21590 A182 F22 A217 WC9 A182 F22
      9 Chrome,
     1 Moly
    K90941 A182 F9 A217 WC6 A182 F9
      13 Chrome S41000 A182 F6A A351 CA15 A276 or A479 410
    304 F304 CF8 ball valve 304 S30400 A182 F304 A351 CF8 A276 or A479 304
    304L F304L CF3 ball valve 304L S30403 A182 F304L A351 CF3 A276 or A479 304L
    316 F316L CF8M ball valve 316 S31600 A182 F316 A351 CF8M A276 or A479 316
    316L F316L CF3M ball valve 316L S31603 A182 F316L A351 CF3M A276 or A479 316L
      317L S31703 A182 F317L A351 CG8M A276 or A479 317L
      321 S32100 A182 F321 - A276 or A479 321
      347 S34700 A182 F347 A351 CF8C A276 or A479 347
      17-4PH S17400 A564 630 - -
    Monel Alloy 400 N04400 M35-1 ball valve Alloy 400 N04400 B564 N04400 A494 M35-1 B164 N04400
      Alloy K500 N05500 - - B865 N05500
      Alloy 800 N08800 B564 N08810 - B408 N08800
    incoloy alloy 825 N08825 ball valve

    Alloy 825 N08825 - - B425 N08825
      Alloy 600 N06600 B564 N06600 A494 CY40 B166 N06600
    Incoloy Alloy 625 N06625 ball valve Alloy 625 N06625 B564 N06625 A494 CW 6MC B446 N06625
      Alloy B2 N10665 B564 N10665 A494 N 12MV B335 N10665
      Alloy C N10002 - A494 CW6M -
      Alloy C22 N06022 B574 N06022 A494 CX2MW B574 N06022
    HASTELLOY Alloy C276 UNS N10276 ball valve Alloy C276 N10276 B564 N10276 A494 CW12 MW B574 N10276

    Duplex steel ball valve (F51/S31803/2205/CD3MN/4A)

    22% Duplex S31803 A182 F51 A890 Gr 4A A276 or A479 S31803
    S32750 F53 6A Duplex ball valve 25% Duplex S32750 or 32760 A182 F53 A890 Gr 6A A276 or A479 S32750 or 60
      254SMO S31254 A182 F44 A351 CK3MCuN A182 F44
    904L N08904 ball valve 904L N08904 B625 N08904 - B649 N08904
      Titanium R50400 B381 F2 B367 C2 B348 Gr 2
