Y44H bellow pressure reducing valve

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：Y44H

Y44H bellow pressure reducing valve Feature

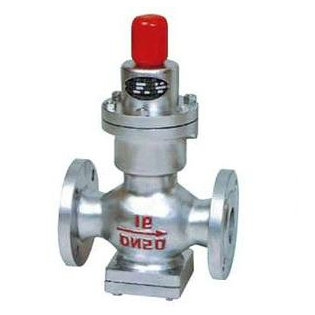

Y44H bellow pressure reducing valve belongs to direct acting bellows spring pressure reducing valve.Y44H bellow pressure reducing valve is mainly consists of bellows, regulating springs, seats, disc and other parts, which use bellows to sense valve pressure to drive the disc, change and regulate valve opening to achieve the pressure-reducing and pressure-stabilizing function.Adjusting bolt of Y44H bellow pressure reducing valve is used to set outlet pressure .Y44H direct acting bellow pressure reducing valve pressure regulation and pressure stabilization is sensitive, this bellow pressure reducing valve is suitable for gas and liquid medium pipeline.

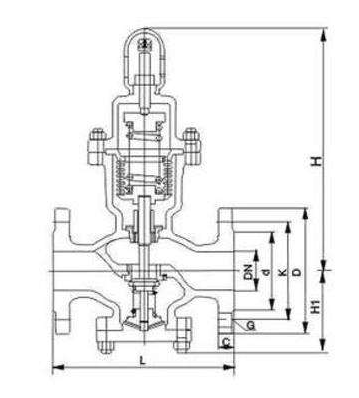

Y44H bellow pressure reducing valve structure

Nominal pressure（MPa）	0.6	1.0	1.6
Shell test pressure（MPa）	0.9	1.5	2.4
Seal test pressure（MPa）	0.66	1.1	1.76
Max. Inlet pressure（MPa）	0.6	1.0	1.6
Outlet pressure range（MPa）	0.05-0.4	0.1-0.8	0.1-1.0
Pressure characteristic deviation（MPa）△P2P	GB12246-1989
Flow characteristic deviation（MPa）△P2G	GB12246-1989
Max. Pressure difference（MPa）	0.1	0.15	0.15
Leakage Level	GB12245-1989
Working temperature	-9～80℃

Note:Shell test does not include diaphragm and roof.

Y44H bellow pressure reducing valve Flow coefficient

DN 15 20 25 32 40 50 65 80 100

Cv 1 2.5 4 6.5 9 16 25 36 64

INQUIRY US

DN	15	20	25	32	40	50	65	80	100
Cv	1	2.5	4	6.5	9	16	25	36	64
