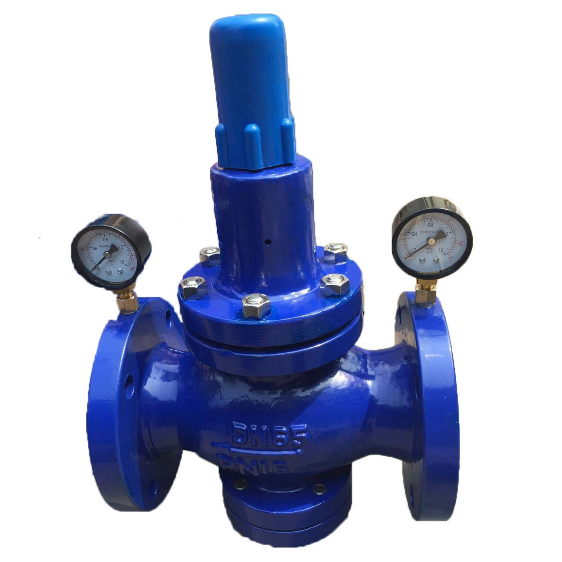

YK42X WCB Pressure reducing valve

Model:YK42X

  • Port size:DN15~500, NPS 1/2〞~ 20〞
  • Pressure:PN10 ~ PN25、 CLASS 150LB
  • Medium:Water,air,gas
  • Temperature :-9~80℃
  • Body material:WCB, CF8 CF8M is optional
  • Connection:Flange
  • Position type:Confirm inlet and outlet pressure
  • Characteristic:Pressure gauge on the flange
  • Voltage:no
  • Other:Pressure difference:≥0.15Mpa
  • YK42X WCB pressure reducing valve Feature

    YK42X  pressure reducing valve is designed on base of Y42X diaphragm pressure reducing valve,there are two pressure gauge on the valve body or flange to check inlet and outlet pressure, YK42X Pressure reducing valve is direct acting diaphragm spring structure,the pressure reducing valve mainly consists of adjusting spring, diaphragm, piston, seat, disc and other parts.The pressure downstream of the diaphragm can be directly sensed to drive the disc, and theYK42X Pressure reducing valve opening can be controlled to realize pressure reduction and pressure stabilization.YK42X Pressure reducing valve can replace the conventional sectional water pipe and save equipment in the cold and hot water supply system of urban buildings and high-rise buildings.YK42X Pressure reducing valve can also be in the usual hot and cold pipeline.

    YK42X Pressure reducing valve is suitable for pipelines of water and non-corrosive liquid media.

  • YK42X WCB Pressure reducing valve working principle

    Pressure gauges on YK42X Pressure reducing valve are installed directly at the upper end of the flange, which can read pressure data of inlet and oulet. Pressure gauges are not required to be installed at both ends of the pipe for the convenience of users.The YK42X Pressure reducing valve mainly consists of valve body, cover, spring, diaphragm seat, etc. The pressure after the valve is directly transferred to the piston, the pressure below maintains the balance, and the action of YK42X Pressure reducing valve is sensitive and quick.YK42X Pressure reducing valve is suitable for the medium temperature of 0 ~ 90 ℃ water, air and non corrosive liquid pipelines, which can replace conventional partition conduit, simplify and save the system equipment, reduce the project cost.
  • YK42X WCB Pressure reducing valve technical parameter

    Nominal pressure(MPa) 1.0 1.6 2.5
    Shell test pressure(MPa) 1.5 2.4 3.75
    Seal test pressure(MPa) 1.1 1.6 2.5
    Max. Inlet pressure(MPa) 1.1 1.6 2.5
    Outlet pressure range(MPa) 0.2-0.8 0.2-1.0 0.4-1.6
    Pressure characteristic deviation(MPa)△P2P GB12246-1989
     Flow characteristic deviation(MPa)△P2G GB12246-1989
    Max. Pressure difference(MPa) 0.15 0.15 0.15
    Leakage Level 0 m L/min
    Note:Shell test does not include diaphragm and roof.
  • YK42X WCB Pressure reducing valve Flow coefficient

    DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 500
    Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250 400 570 780 1020 1500
  • YK42X WCB Pressure reducing valve main material

    Part Name Part Material
    Body/Bonnet/End bonnet WCB/Cast iron/Ductile iron
    Seat 2Cr13/
    Cylinder sleeve 2Cr13/Copper
    Piston Cast iron
    Guide valve seat / stem 2Cr13
    Main valve spring 1Cr18Ni9Ti
    Guide valve sprig 50CrVA
    Regulating spring 60Si12Mn
  • YK42X WCB Pressure reducing valve outline dimension

    DN                                                    Outline dimension (PN1.6-2.5Mpa)              Unit(mm)
    L H Hl
    15 160 225 90
    20 160 265 98
    25 180 265 110
    32 200 265 110
    40 220 320 125
    50 250 320 125
    65 280 325 130
    80 310 385 160
    100 350 385 170
    125 400 430 200
    150 450 430 210
    200 500 560 240
    250 650 690 290
    300 800 800 335
    350 850 880 375
    400 900 980 405
    450 900 1100 455
    500 950 1130 465
