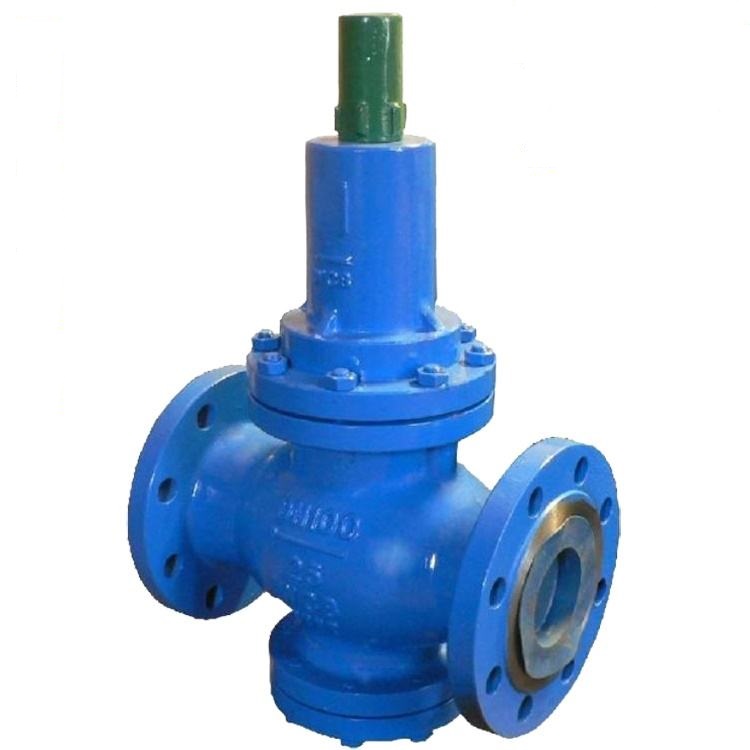

Y42X Diaphragm pressure reducing valve

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：Y42X

Y42X Diaphragm pressure reducing valve Feature

Y42X Diaphragm pressure reducing valve is direct acting diaphragm spring structure,Y42X Diaphragm pressure reducing valve mainly consists of adjusting spring, diaphragm, piston, seat, disc and other parts.The pressure downstream of the diaphragm can be directly sensed to drive the disc, and the Y42X Diaphragm pressure reducing valve opening can be controlled to realize pressure reduction and pressure stabilization.Y42X Diaphragm pressure reducing valve can replace the conventional sectional water pipe and save equipment in the cold and hot water supply system of urban buildings and high-rise buildings.Y42X Diaphragm pressure reducing valve can also be in the usual hot and cold pipeline.

Y42X Diaphragm pressure reducing valve is suitable for pipelines of water and non-corrosive liquid media.
Y42X Diaphragm pressure reducing valve structure

Nominal pressure（MPa）	1.0	1.6	2.5
Shell test pressure（MPa）	1.5	2.4	3.75
Seal test pressure（MPa）	1.1	1.6	2.5
Max. Inlet pressure（MPa）	1.1	1.6	2.5
Outlet pressure range（MPa）	0.2-0.8	0.2-1.0	0.4-1.6
Pressure characteristic deviation（MPa）△P2P	GB12246-1989
Flow characteristic deviation（MPa）△P2G	GB12246-1989
Max. Pressure difference（MPa）	0.15	0.15	0.15
Leakage Level	0 m L/min

Note:Shell test does not include diaphragm and roof.

Y42X Diaphragm pressure reducing valve Flow coefficient

DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 500

Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250 400 570 780 1020 1500

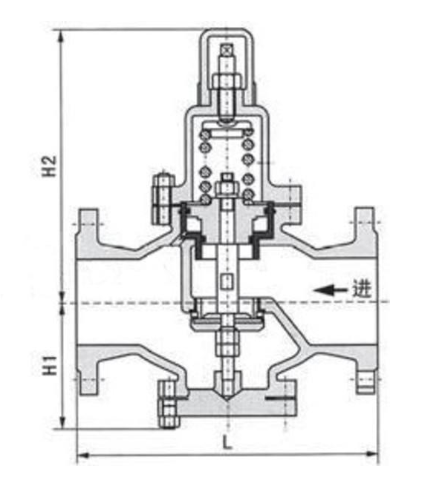

DN	Outline dimension (PN1.6-2.5Mpa) Unit(mm)
DN	L	H	Hl
15	160	225	90
20	160	265	98
25	180	265	110
32	200	265	110
40	220	320	125
50	250	320	125
65	280	325	130
80	310	385	160
100	350	385	170
125	400	430	200
150	450	430	210
200	500	560	240
250	650	690	290
300	800	800	335
350	850	880	375
400	900	980	405
450	900	1100	455
500	950	1130	465

INQUIRY US

DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	500
Cv	1	2.5	4	6.5	9	16	25	36	64	100	140	250	400	570	780	1020	1500
