Model：ZJHCF
ZJHPF Pneumatic fluorine (PTFE,FEP,PFA) lined control valve is composed of pneumatic diaphragm actuator,straight through single seat fluoride (PTFE,FEP,PFA) Lined structure.Pneumatic fluorine lined control valve contacted with the corrosive medium adopts the corrosion-resistant, anti-aging PTFE,PEP,PRA, the high pressure lining fluorine plastic process.Pneumatic fluoride (PTFE,FEP,PFA) lined control valve is capable of controlling the flow of acid, alkali, aqua wang and other highly corrosive media, toxic volatile gas and liquid media.Therefore, Pneumatic fluoride (PTFE,FEP,PFA) lined control valve is widely used in chemical, metallurgy, medicine and other industries.
ZJHPF Pneumatic fluorine (PTFE,FEP,PFA) lined control valve Features as below:
1. Good corrosion resistance: the inner cavity of Pneumatic fluorine lined control valve body, core, seat are lined with 3mm thick fluorine (PTFE,PEP,PRA) , which can withstand strong corrosive fluid.
2. Good sealing performance: double sealing with PTFE bellows and packing.
3. The leakage quantity is little, because the Pneumatic fluorine lined control valve core and seat are soft seal, leakage was far below the national Ⅳ level standard.
4. High adjustment accuracy: Pneumatic fluorine lined control valve adopts precise and small pneumatic and electric actuators, small in size and light in weight.
| Fluorine lined control valve Body type: |
straight through casting globe type Fluoride (PTFE,FEP,PFA) lined |
| Spool type: | non-balanced single seat plug type |
| Nominal size: | DN20~200,、 NPS 3/4〞~ 8〞 |
| Nominal pressure: | PN16 ~ 100、 CLASS 150LB ~ 600LB |
| Connection: flange: | FF、RF、MF、RTJ |
| Welding: | SW、BW |
| Flange dimension: | According to to IEC 60534 |
| Pneumatic fluoride lined control valve Bonnet type: | Ⅰ:standard type（-29℃~150℃） |
| Packing: | V type PFTE packing, flex. graphite packing, etc. |
| Gasket: | Metal graphite packing |
| Actuator: | Pneumatic: multi-spring diaphragm actuator, piston type actuator. |

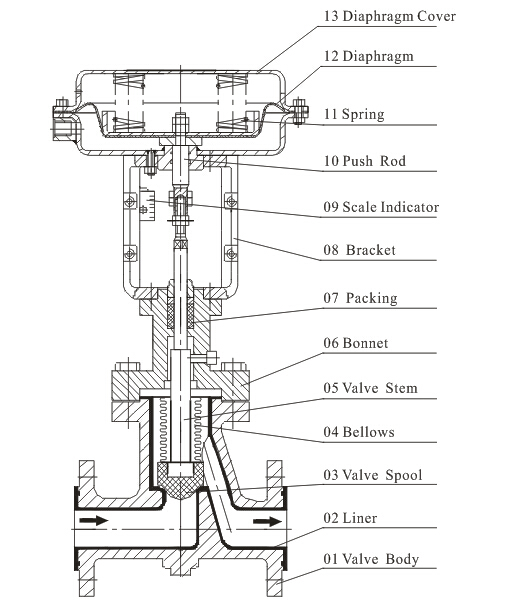

| Component name | Control Valve Material |
| Body/Bonnet | WCB/CF8/CF8M/CF3M |
| Lined Material | PTFE,FEP,PFA |
| Control Valve spool/Seat | 304/316/316L Lined PTFE/FEP/PFA |
| Packing | PTFE |
| Gasket | PTFE |
| Diaphragm Cover | Normal:Q235,Special:304 |
| Diaphragm | NBR with reinforced polyester fabric |
| Spring | Normal:60Si2Mn,Special:50CrVa |
| Control valve stem | 2Cr13/17-4PH/304/316/316L |
| Z | Actuator | H | Structure | Nominal size | Body material | Bonnet type | Nominal pressure | |
| Z series control valve | J: pneumatic diaphragm actuator H: pneumatic piston actuator |
H:direct travel | PF: standard fluorine lined control valve PF4: PTFE lined control valve PF46: PEP lined control valve PFa: PFA lined control valve |
DN25= NPS1〞=25 DN50= NPS2〞=50 |
C=WCB LC=LCB P=CF8 PL=CF3 R=CF8M RL=CF3M D=special material |
Ⅰ:standard type（-20℃~150℃） |
PN16=16 CL150LB=150 LB JIS10K=10K |
|
| Such as: Z type Pneumatic control valve,,metal seat, PTFE lined ,PN16, body: WCB, nominal size: DN50, type: ZJHPF4-50CⅠ-16 | ||||||||
| fluorine lined control valve Flow characteristic | Linear, percentage, quick open | |
| Allowable range | 30: 1 | |
| Rated Cv value | Percentage CV6.3~400 ，linear CV6.9~440 | |
| Pneumatic fluorine lined control valve Allowable leakage |
Soft seal: VI grade（foam grade） Leakage standard: GB/T 4213 |
|
| Pneumatic fluorine lined control valve Performance | ||
| Intrinsic error(%) | ±1.5 | |
| Return difference(%) | ≤1.5 | |
| Dead zone(%) | ≤0.6 | |
| Difference from beginning to end point(%) | ±2.5 | |
| Rated travel difference(%) | ≤2.5 | |
| Pneumatic fluorine lined control valve Type\ Method |
Pneumatic diaphragm actuator |
| ZH23～ZH56 | |
| Multi-spring type | |
| Usage | Regulating type, ON-OFF type |
| Air supply pressure or Power supply voltage | Air supply pressure (Spring range) 140（20～100）Kpa G 240 (40～200) Kpa G 280 (80～240) Kpa G |
| Connector | Air pipe connector: RC1/4 |
| Direct action | Pressure increase, stem descend, valve close. |
| Reaction | Pressure increase, stem ascend, valve open. |
| Input signal | 40～20mA.DC（with positioner） |
| Lag | ≤1%FS（with positioner） |
| Linear type | 2%FS（with positioner） |
| Environmental temperature | -10℃～+70℃ |
| Pneumatic fluorine lined control valve Accessories | E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, limited switch Non-standard accessories, need special customized notes. |
| Nominal size, DN | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | ||
| Rated flow coefficient, Cv | Percentage | 8 | 12 | 20 | 32 | 50 | 70 | 100 | 200 | 240 | ||
| Linear | 5 | 10 | 16 | 25 | 38 | 63 | 80 | 120 | 220 | 300 | ||
| Travel | 16mm | 25 mm | 40mm | 60mm | ||||||||
| Pneumatic actuator Diaphragm effective area, Ae (cm2) |
ZHA/B-22 | ZHA/B-23 | ZHA/B-34 | ZHA/B-45 | ||||||||
| 350 | 350 | 560 | 900 | |||||||||
| Action | Spring range | ZJPHF Pneumatic fluorine lined control valve Max. allowable pressure difference（MPa） |
||||||||||
| Air open | 20-100KPa | 1.16 | 0.7 | 0.44 | 0.28 | 0.18 | 0.17 | 0.11 | 0.07 | 0.07 | 0.05 | |
| 40-200 KPa | 3.34 | 2.14 | 1.31 | 0.84 | 0.53 | 0.51 | 0.33 | 0.21 | 0.22 | 0.15 | ||
| 80-240 KPa | 6.4 | 4.99 | 3.05 | 1.95 | 1.25 | 1.18 | 0.78 | 0.5 | 0.51 | 0.36 | ||
| Air close | 20-100KPa | 2.23 | 2.14 | 0.87 | 0.56 | 0.35 | 0.34 | 0.22 | 0.14 | 0.15 | 0.1 | |
| 40-200 KPa | 6.4 | 6.4 | 5.86 | 3.64 | 2.3 | 2.21 | 1.43 | 0.91 | 0.95 | 0.66 | ||
| 80-240 KPa | 6.4 | 6.4 | 6.4 | 5.04 | 3.18 | 3.06 | 1.98 | 1.26 | 1.32 | 0.92 | ||
