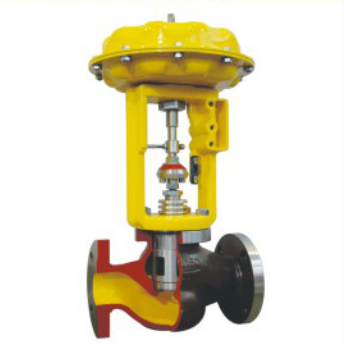

Pneumatic small port sleeve control valve

Model:HLC

  • Port size:DN15~25, NPS 1/2〞~ 1〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-196~450℃
  • Body material:WCB CF8 CF8M+FEP/PTFE/PFA
  • Connection:Flange,thread and welding is optional
  • Position type:Air pressure increase, valve close or opposite
  • Characteristic:Linear, percentage, quick open
  • Voltage:Depond on solenoid valve
  • Other:Single seat or sleeve is optional
  • Pneumatic small port sleeve control valve Feature

    Pneumatic small port sleeve control valve is designed for small flow medium, the spool is sleeve structure,which is better choice for high pressure medium. The compact  control valve body, having an S-shape flow passage that features low pressure loss, allows a large flowcapacity,rangeability, and high accuracy flow characteristics.

    Pneumatic small port sleeve control valve plugs are available in wide range of Cv values. The flow shutoff performance complies with the IEC or JIS standards. The actuator integrated with simplest mechanisms utilizes a compact yet powerful diaphragm actuator leaded with multiple springs.

    Pneumatic small port sleeve control valve is widely applicable for reliable control of small flows in high or low temperature, high pressure process lines.

  • Pneumatic small port sleeve control valve Specification

    Pneumatic control valve
    Body type:
    straight through casting globe type
    Spool type: non-balanced sleeve plug type
    Nominal size: DN15~25,、 NPS 1/2〞~ 1〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Pneumatic small port sleeve
    control valve Bonnet type:
    Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Pneumatic Control valve Actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.

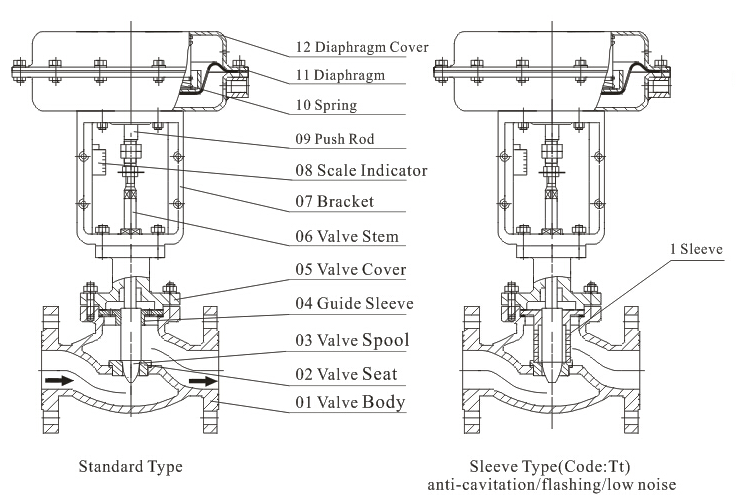

  • Pneumatic small port sleeve control valve Structure

  • Pneumatic small port sleeve control valve Material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • Pneumatic small port sleeve control valve Performance

    Pneumatic single seat control valve
    Flow characteristic
    Linear, percentage, quick open
    Allowable range 30: 1
    Rated Cv value CV 0.01-1.0
    Pneumatic control valve Allowable leakage Metal seal:  IV grade(0.01% rated capacity)
    Leakage standard:  GB/T 4213
    Pneumatic small port single seated control valve Performance
    Intrinsic error % ±1.5
    Return difference, % ≤1.5
    Dead zone, % ≤0.6
    Difference from beginning to end point, % ±2.5
    Rated travel difference, % ≤2.5
  • Pneumatic small port sleeve control valveSpecial requirement

    Special test Material penetration flaw detection (PT), radiator test (RT), flow characteristic test,
    low temperature test.
    Special treatment Trim nitrogen treatment, seat hard alloy treatment.
    Special rinse Degreasing and dehydration treatment
    Special condition Special piping or connection, vacuum condition, S.S fastener, special coating.
    Special dimension Customized face to face length or dimension
    Test and inspection Third party test report
  • Pneumatic small port sleeve control valve parameter

    Control Valve Type\ Method Pneumatic diaphragm actuator
    ZHA/B-22
    Multi-spring type
    Usage Regulating type, ON-OFF type
    Air supply pressure or Power supply voltage Air supply pressure (Spring range)
    140(20~100)Kpa G
    240 (40~200) Kpa G
    280 (80~240) Kpa G
    Connector Air pipe connector: RC1/4
    Direct action Pressure increase, stem descend, valve close.
    Reaction Pressure increase, stem ascend, valve open.
    Input signal 40~20mA.DC(with positioner)
    Lag ≤1%FS(with positioner)
    Linear type 2%FS(with positioner)
    Environmental temperature -10℃~+70℃
    Pneumatic control valve
    Accessories
    E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, limited switch
    Non-standard accessories, need special customized notes.
  • Pneumatic small port sleeve control valve technical parameter

    Rated flow coefficient Cv Equal percentage         0.25 0.1 0.4 0.63 1.0
    Linear 0.01 0.04 0.1 0.16 0.25 0.1 0.4 0.63 1.0
    DN Travel Option flow coefficient Cv(★ standard ●recommended ○customized)
    DN15 16mm
    DN20
    DN25
    Pneumatic actuator ZHA/B-22
    Pneumatic diaphragm effective area,  Ae (cm2) 350
