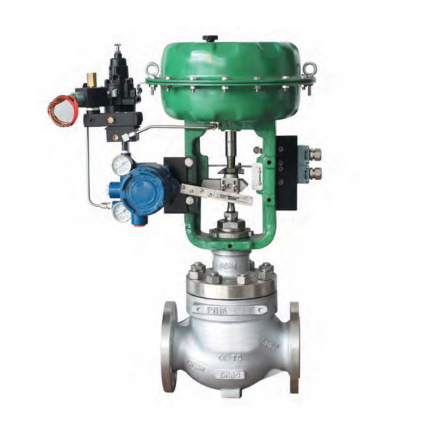

Pneumatic heavy duty industrial control valve

Model:

  • Port size:DN15-DN300
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Water,steam,oil,etc.
  • Temperature :-40~450℃
  • Body material:WCB,WCC,WC6,WC9,CF8,CF8M,etc.
  • Connection:Flange
  • Position type:Adjusting according to positioner
  • Characteristic:Linear,Equal percentage,quick open
  • Voltage:Deponds on accessory
  • Other:Top handwheel is optional
  • Pneumatic heavy duty industrial control valve Feature

    Pneumatic heavy duty industrial control valve adopts double sealing surface spool structure, applicable for low leakage requirement;Pneumatic heavy duty industrial Control Valve adopts pressure-balanced spool structure, allowed large pressure differential, low noise and steady and reliable actuation;Actuator of Pneumatic heavy duty industrial control valve adopts  multi-spring circular equal layout, using high strength rubber diaphragm actuation parts,with small structure and large output force
  • Pneumatic heavy duty industrial control valve specification

    Pneumatic control valve
    Body type:
    straight through casting globe type
    Spool type: balanced cage guided sleeve type
    Nominal size: DN20~200,、 NPS 3/4〞~ 8〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Pneumatic heavy duty industrial control valve
    Bonnet type:
    Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.
  • Pneumatic heavy duty industrial control valve structure

  • Pneumatic heavy duty industrial control valve material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • Pneumatic heavy duty industrial control valve performance

    Pneumatic control valve Flow characteristic Linear, percentage, quick open
    Allowable range 50: 1
    Rated Cv value Percentage CV10~1400 ,linear CV11~1500
    Pneumatic heavy duty industrial control valve
    Allowable leakage
    Metal seal:Ⅱgrade(0.5% rated capacity)
    Soft seal: V grade
    Leakage standard:  GB/T 4213
    Pneumatic heavy duty industrial control valve Performance
    Intrinsic error (%) ±1.0
    Return difference(%) ≤1.0
    Dead zone(%) ≤1.0
    Difference from beginning to end point(%) ±2.5
    Rated travel difference(%) ≤2.5
