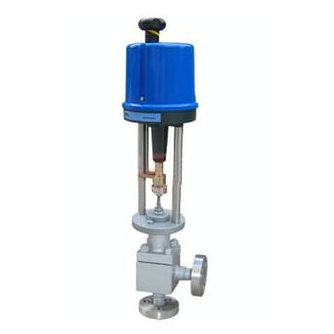

ZRHJ electric angle control valve

Model:ZRHJ

  • Port size:DN20~200, NPS 3/4〞~ 8〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:high viscosity medium
  • Temperature :-196~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flange,welding
  • Position type:Input signal increase, valve close or opposite
  • Characteristic:Linear, percentage, quick open
  • Voltage:AC220,AC380
  • Other:Explosion-proof type is optional
  • ZRHJ electric angle control valve Feature

    ZRHJ electric angle control valve is specially designed for the medium which is high viscosity, easy to crystallize, containing suspended particles and 90 degree angle area. Electric angle control valve can choose single seat or balanced sleeve disc,which can be used on some high pressure differential or multistage adjustment.
    ZRHJ electric control valve main advantage as below:
    01.Electric Angle Control Valve is used for large viscosity, easy crystallization,and easy coagulation situation, etc.
    02.Actuator of  Electric angle control valve  adopts multi-spring circular equal layout, using high strength rubber diaphragm actuation parts, with small structure and large output force
    03. Small pressure differential loss, accurate flow control
    04.No dead corner in the Electric angle control valve, easy to clean, also applicable for food industry
  • ZRHJ electric angle control valve specification

     Electric  angle control valve      Body type: angle casting globe type
    Spool type: single seat,cage guiede
    Nominal size: DN20~200 NPS 3/4〞~ 8〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Electric angle control valve
    Bonnet type:
    Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Control valve Actuator: Pneumatic:multi-spring diaphragm actuator, piston type actuator.

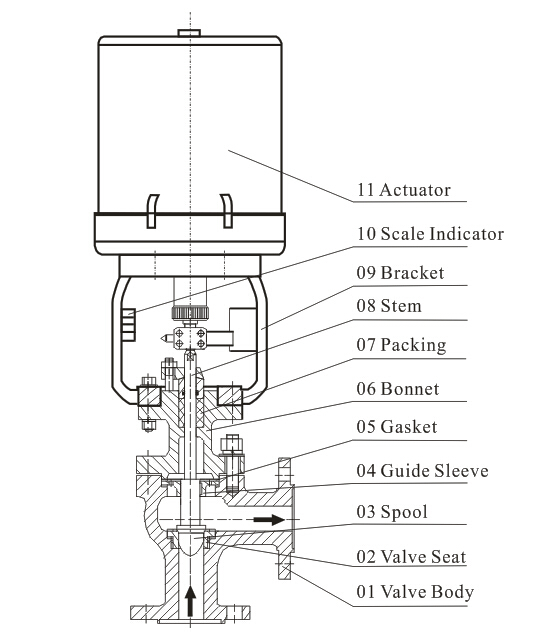

  • ZRHJ electric angle control valve structure

  • ZRHJ electric angle control valve material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Bellow 304,316,316L
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Stem 2Cr13/17-4PH/304/316/316L
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
  • ZRHJ electric angle control valve type code

    Z Actuator H Structure Nominal size Body material Bonnet type Nominal pressure
    Z series control valve J:  pneumatic diaphragm
    type

    H: pneumatic piston type
    R: electric 3810L type
    D: electric PSL type
    H: direct travel J:  standard angle single seat control valve
    JM: standard angle cage guided control valve
    DN25=NPS1〞=25

    C=WCB
    LC=LCB
    P=CF8
    PL=CF3
    R=CF8M
    RL=CF3M
    D= special material
    Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than   230℃ occasion)
    Ⅲ:Low temperature       extended type
    (-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation  Jacket type
    DN25= DN25
    NPS1〞=
    NPS 1〞
    PN16=16
    CL150LB=150 LB
    JIS10K=10K
    Such as:Electric angle single seat  control valve, radiator type, pressure PN16, valve material WCB, nominal size DN50, type:  ZRHJ-50CⅡ-16
  • ZRHJ electric angle control valve performance

    Electric  angle control valve Flow characteristic Linear, percentage
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage 1.6~630/ linear CV1.8~690
    Electric angle control valve
    Allowable leakage
    Metal seal:  IV grade(0.01% rated capacity)
    Soft seal: VI grade(foam grade)
    Leakage standard:  GB/T 4213
    Electric  angle control valve  Performance
    Intrinsic error(%) ±1.0
    Return difference(%) ≤1.0
    Dead zone(%) ≤1.0
    Difference from beginning to end point(%) ±2.5
    Rated travel difference(%) ≤2.5
  • ZRHJ electric control valve special requirment

    Special test Material penetration flaw detection (PT), radiator test (RT), flow characteristic test,
    low temperature test.
    Special treatment Trim nitrogen treatment, seat hard alloy treatment.
    Special rinse Degreasing and dehydration treatment
    Special condition Special piping or connection, vacuum condition, S.S fastener, special coating.
    Special dimension Customized face to face length or dimension
    Test and inspection Third party test report
  • ZRHJ electric angle control valve actuator parameter

    Electric angle control valve
    Type\ Method
    Electric actuator
    3810L series
    Intelligent integrated type
    Usage Regulating
    Air supply pressure or Power supply voltage Power: AC 200V±10%  50Hz
    Or Power:  AC 380V±10% 50Hz
    Connector Normal type:  cable inlet 2-PF(G1/2〞)
    Explosive proof:  Protection jacket PF(G3/4〞)
    Direct action Input signal increase, stem descend, valve close.
    Reaction Input signal increase, stem ascend, valve open.
    Input signal Input/output4~20mA.DC
    Lag ≤0.8%FS
    Linear type +1%FS
    Environmental temperature Standard type: -10℃~+60℃
    With space heater : -35℃~+60℃
    Explosive proof: -10℃~+40℃
    Electric angle control valve
    Accessories
    Space heater (normal type)
    Non-standard accessories, need special customized notes.
  • ZRHJ electric control valve technical parameter

    Seat diameter(mm) 10 12 15 20 25 32 40 50 65 80 100 125 150 200
    Rated Cv Percentage 1.6 2.5 4.0 6.3 10 16 25 40 63 100 160 250 400 630
    Linear 1.8 2.8 4.4 6.9 11 17.6 27.5 44 69 110 176 275 440 690
    Nominal size Travel Option flow coefficient Cv(★ standard ●recommended ○customized)
    DN20 16mm
    DN25
    DN32 25 mm
    DN40
    DN50
    DN65 40mm
    DN80
    DN100
    DN125 60mm
    DN150
    DN200
    Electric actuator Electric angle control valve
    Metal seal allowable max. pressure difference(MPa)
    Type Thrust(N)
    3810L-08 800 6.4 5.5 3.5 2.38 1.52
    3810L-20 2000 6.4 6.4 6.4 4.77 3.05 1.86 1.19 0.76
    3810L-30 3000           2.79 1.79 1.14
    3810L-50 5000           4.66 2.98 1.91 1.13 0.6 0.47
    3810L-65 6500                 1.35 0.8 0.57 0.39 0.26 0.16
    3810L-99 10000                       0.61 0.42 0.20
    3810L-160 16000                       0.97 0.67 0.35
