Electric Thermostatic Control Valve

Model:ZZWPE

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB WCC LCB CF8 CF3 CF8M CF3M
  • Connection:Flange,thread and SW is optional
  • Position type:Automatic control
  • Characteristic:Linear, Equal percentage
  • Voltage:AC220,AC380
  • Other:
  • Electric Thermostatic Control Valve valve Feature

    Electric Thermostatic Control Valve is composed of electric control valve, temperature controller and thermocouple, Electric Thermostatic Control Valve adopts the top guide structure, compact structure, S streamlined fluid path, large flow, small pressure differential loss, wide adjustable range and accurate temperature control.Electric Thermostatic Control Valve is built into the electric actuator,without external positioner
  • Electric Thermostatic Control Valve process chart

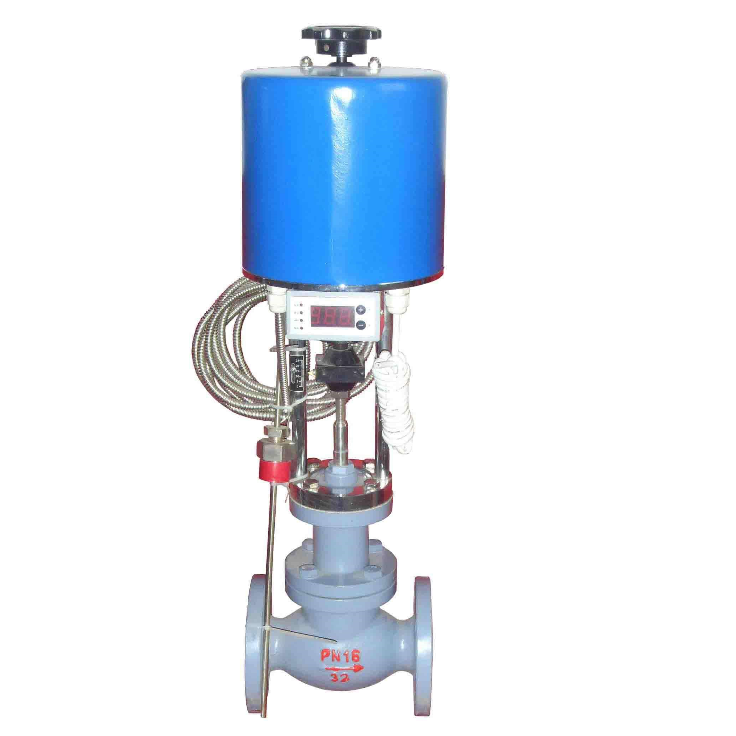

    electric temperature control valve
  • Electric Thermostatic Control Valve structure

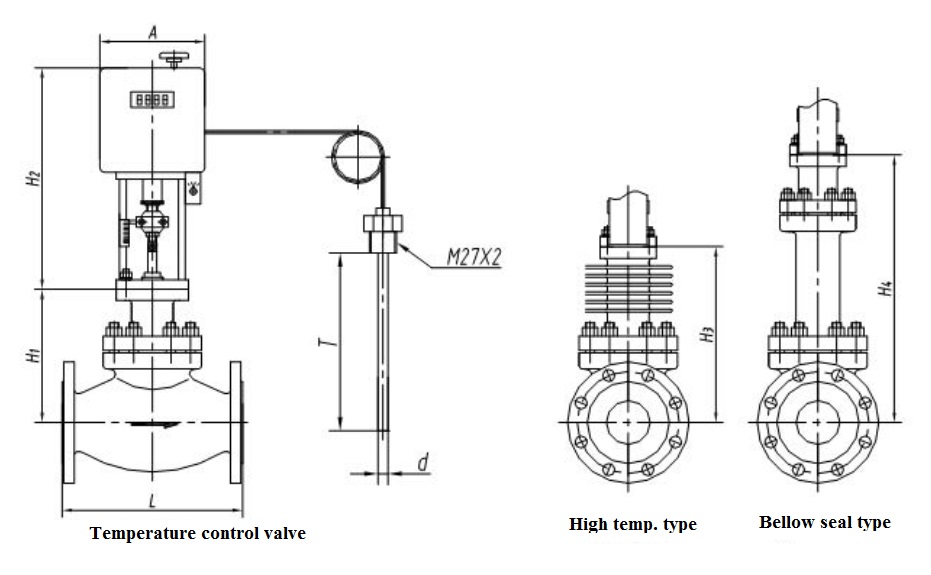

    Electric Thermostatic Control Valve structure
  • Electric Thermostatic Control Valve material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Bellows 304/316/316L
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • ​Electric Thermostatic Control Valve Performance

    Electric control valve Flow characteristic Linear, percentage, quick open
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage CV1.6~630 ,linear CV1.8~690
    Electric control valve Allowable leakage Metal seal:  IV grade(0.01% rated capacity)
    Soft seal:  VI grade(foam grade)
    Leakage standard:  GB/T 4213
    Electric automatic temperature control valve Performance
    Intrinsic error (%) ±1.0
    Return difference(%) ≤1.0
    Dead zone(%) ≤1.0
    Difference from beginning to end point(%) ±2.5
    Rated travel difference(%) ≤2.5
  • Electric Thermostatic Control Valve actuator parameter

    Electric control valve Type\ Method Electric actuator
    3810L series
    Intelligent integrated type
    Usage Regulating
    Air supply pressure or Power supply voltage Power: AC 200V±10%  50Hz
    Or Power:  AC 380V±10% 50Hz
    Connector Normal type:  cable inlet 2-PF(G1/2〞)
    Explosive proof:  Protection jacket PF(G3/4〞)
    Direct action Input signal increase, stem descend, valve close.
    Reaction Input signal increase, stem ascend, valve open.
    Input signal Input/output4~20mA.DC
    Lag ≤0.8%FS
    Linear type +1%FS
    Environmental temperature Standard type: -10℃~+60℃
    With space heater : -35℃~+60℃
    Explosive proof: -10℃~+40℃
    Electric Thermostatic Control Valve Accessories Space heater (normal type)
    Non-standard accessories, need special customized notes.
