Electric high pressure angle control valve

Model:ZRHJH

  • Port size:DN20~200, NPS 3/4〞~ 8〞
  • Pressure:PN160 ~420,900LB ~ 2500LB
  • Medium:high pressure water,oil,steam
  • Temperature :-40~570℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flange,welding
  • Position type:Input signal increase, valve close or opposite
  • Characteristic:Linear, percentage, quick open
  • Voltage:AC220,AC380
  • Other:Explosion-proof type is optional
  • Electric high pressure angle control valve Feature

    Electric high pressure angle control valve is a special valve for high pressure system.Electric high pressure angle control valve is composed of DDZ direct stroke electric actuator and Angle valve.Take single alternating current 220V power supply as power, accept 0 ~ 10 or mA or 4 ~ 20mA dc signal, automatically control the opening size of the control valve, and achieve continuous regulation of the pressure, flow rate, temperature, liquid level and other process parameters in the pipeline.
    Electric high pressure angle control valve is widely used for automatic adjustment and remote control of production process in chemical fertilizer, petrochemical, power station, light industry, etc.

    Electric high pressure angle control valve body small, light weight, valve core use top guide structure, with simple flow path, small resistance, easy to flush features.Electric high pressure angle control valve is suitable for rectangular connection, medium with high viscosity, suspension and granular media.
  • Electric high pressure angle control valve specification

     Electric high pressure angle control valve  Body type: angle casting globe type
    Spool type: single seat,cage guiede
    Nominal size: DN20~200 NPS 3/4〞~ 8〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Electric high pressure angle control valve Bonnet type: Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Control valve Actuator: Pneumatic:multi-spring diaphragm actuator, piston type actuator.

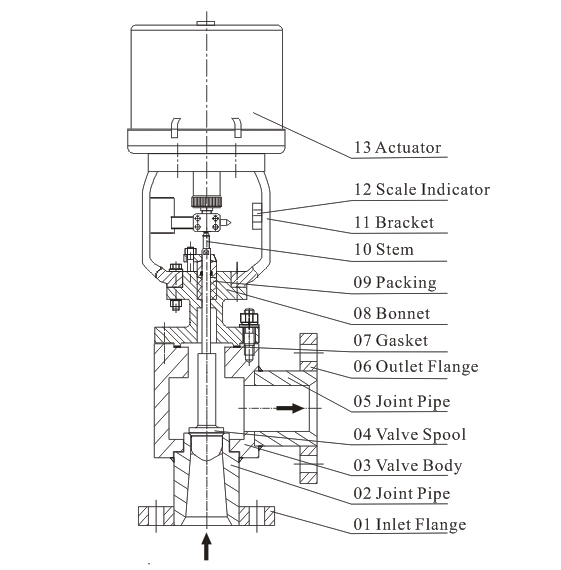

  • Electric high pressure angle control valve structure


  • Electric high pressure angle control valve  material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Bellow 304,316,316L
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Stem 2Cr13/17-4PH/304/316/316L
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
  • ZRHJ electric angle control valve type code

    Z Actuator H Structure Nominal size Body material Bonnet type Nominal pressure
    Z series control valve J:  pneumatic diaphragm
    type

    H: pneumatic piston type
    R: electric 3810L type
    D: electric PSL type
    H: direct travel J:  standard angle single seat control valve
    JH:high pressure angle control valve
    DN25=NPS1〞=25

    C=WCB
    LC=LCB
    P=CF8
    PL=CF3
    R=CF8M
    RL=CF3M
    D= special material
    Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than   230℃ occasion)
    Ⅲ:Low temperature       extended type
    (-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation  Jacket type
    DN25= DN25
    NPS1〞=
    NPS 1〞
    PN16=16
    CL150LB=150 LB
    JIS10K=10K
    Such as:Electric high pressure angle control valve, radiator type, pressure PN16, valve material WCB, nominal size DN50, type:  ZRHJH-50CⅡ-16
  • Electric high pressure angle control valve performance

    Electric high pressure angle control valve  Flow characteristic Linear, percentage
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage 1.6~630/ linear CV1.8~690
    Electric angle control valve
    Allowable leakage
    Metal seal:  IV grade(0.01% rated capacity)
    Soft seal: VI grade(foam grade)
    Leakage standard:  GB/T 4213
    Electric  angle control valve  Performance
    Intrinsic error(%) ±1.0
    Return difference(%) ≤1.0
    Dead zone(%) ≤1.0
    Difference from beginning to end point(%) ±2.5
    Rated travel difference(%) ≤2.5
  • Electric high pressure angle control valve special requirment

    Special test Material penetration flaw detection (PT), radiator test (RT), flow characteristic test,
    low temperature test.
    Special treatment Trim nitrogen treatment, seat hard alloy treatment.
    Special rinse Degreasing and dehydration treatment
    Special condition Special piping or connection, vacuum condition, S.S fastener, special coating.
    Special dimension Customized face to face length or dimension
    Test and inspection Third party test report
  • Electric high pressure angle control valve  actuator parameter

    Electric high pressure angle control valve
    Type\ Method
    Electric actuator
    3810L series
    Intelligent integrated type
    Usage Regulating
    Air supply pressure or Power supply voltage Power: AC 200V±10%  50Hz
    Or Power:  AC 380V±10% 50Hz
    Connector Normal type:  cable inlet 2-PF(G1/2〞)
    Explosive proof:  Protection jacket PF(G3/4〞)
    Direct action Input signal increase, stem descend, valve close.
    Reaction Input signal increase, stem ascend, valve open.
    Input signal Input/output4~20mA.DC
    Lag ≤0.8%FS
    Linear type +1%FS
    Environmental temperature Standard type: -10℃~+60℃
    With space heater : -35℃~+60℃
    Explosive proof: -10℃~+40℃
    Electric high pressure angle control valve
    Accessories
    Space heater (normal type)
    Non-standard accessories, need special customized notes.
