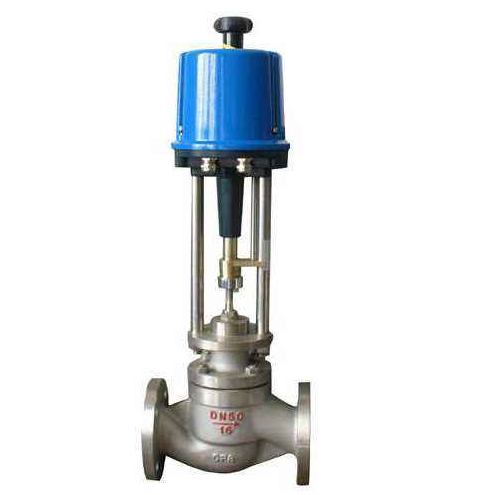

Electric flow control valve

Model:

  • Port size:DN25~300, NPS 1〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,liquid
  • Temperature :-20~120℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flange
  • Position type:Flow to open,flow to close
  • Characteristic:Linear, percentage, quick open
  • Voltage:AC220V,AC380V, other voltage customed
  • Other:Different electric actuator is optional
  • Electric flow control valve Feature

    1.Electric flow control valve is used for flow control system,electric flow control valve adopts the top guide structure, compact structure, S streamlined fluid path, large flow, small pressure differential loss, wide adjustable range and accurate flow control.
    2.Electric flow control valve is single seat design for low pressure differnece , cage guided design for high pressure difference, spool guiding part, characterized with excellent anti-vibration performance
    3.The intelligent control module of electric flow control valve is built into the electric actuator,without external positioner
  • Electric flow control valve Specification

    Electric control valve
    Body type:
    straight through casting globe type
    Spool type: non-balanced single seat plug type
    Nominal size: DN20~200,、 NPS 3/4〞~ 8〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Electric flow control valve
    Bonnet type:
    Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Actuator: Electric: 3810L series smart actuator, PSL series actuator.
  • Electric flow control valve material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Bellows 304/316/316L
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • ​Electric flow control valve Performance

    Electric control valve Flow characteristic Linear, percentage, quick open
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage CV1.6~630 ,linear CV1.8~690
    Electric control valve Allowable leakage Metal seal:  IV grade(0.01% rated capacity)
    Soft seal:  VI grade(foam grade)
    Leakage standard:  GB/T 4213
    Electric flow control valve Performance
    Intrinsic error (%) ±1.0
    Return difference(%) ≤1.0
    Dead zone(%) ≤1.0
    Difference from beginning to end point(%) ±2.5
    Rated travel difference(%) ≤2.5
  • Electric flow control valve actuator parameter

    Electric control valve Type\ Method Electric actuator
    PSL series, 3801 series is optional
    Intelligent integrated type
    Usage Regulating
    Air supply pressure or Power supply voltage Power: AC 200V±10%  50Hz
    Or Power:  AC 380V±10% 50Hz
    Connector Normal type:  cable inlet 2-PF(G1/2〞)
    Explosive proof:  Protection jacket PF(G3/4〞)
    Direct action Input signal increase, stem descend, valve close.
    Reaction Input signal increase, stem ascend, valve open.
    Input signal Input/output4~20mA.DC
    Lag ≤0.8%FS
    Linear type +1%FS
    Environmental temperature Standard type: -10℃~+60℃
    With space heater : -35℃~+60℃
    Explosive proof: -10℃~+40℃
    Electric control valve Accessories Space heater (normal type)
    Non-standard accessories, need special customized notes.
