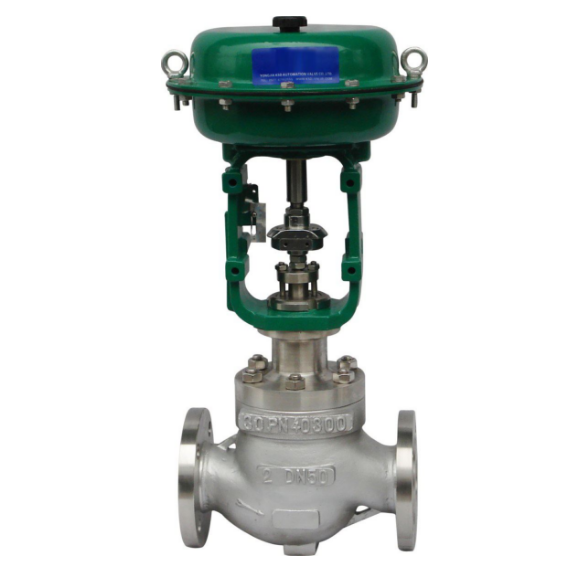

Pneumatic water level control valve

Model:

  • Port size:DN25~300, NPS 1〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,liquid
  • Temperature :-20~80℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flange
  • Position type:Fail Closed/Open
  • Characteristic:Linear, percentage, quick open
  • Voltage:Depond on solenoid valve
  • Other:Electric control valve is optional
  • Pneumatic water level control valve feature

    Pneumatic water level control valve with spring pneumatic diaphragm actuator (or piston pneumatic actuator) which is for water or liquid level control, multi spring actuator of low height, light weight, simple equipment. Pneumatic water level control valve flow channel was streamlined S, the control valve has the advantages of compact structure, light weight, flexible action, small pressure drop loss, valve capacity, flow characteristics of precision, convenient maintenance, pPneumatic water level control valve regulating mechanism adopts balanced valve plug valve structure, has good stability, not easy to vibration, low noise the temperature sensitivity, small.

  • Pneumatic water level control valve Material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing  flexible graphite
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • Pneumatic water level control valve Performance

    Pneumatic water level control valve
    Flow characteristic
    Linear, percentage, quick open
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage CV1.6~630 ,linear CV1.8~690
    Pneumatic control valve Allowable leakage Metal seal:  IV grade(0.01% rated capacity)
    Leakage standard:  GB/T 4213
    Pneumatic water level control valve Performance
    Intrinsic error % ±1.5
    Return difference, % ≤1.5
    Dead zone, % ≤0.6
    Difference from beginning to end point, % ±2.5
    Rated travel difference, % ≤2.5
