Pneumatic sanitary control valve

Model:

  • Port size:DN40-DN100
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:dairy, beverage, food,etc.
  • Temperature :-20~150℃
  • Body material:304/316/316L or other stanless steel
  • Connection:Clamp or other
  • Position type:4-20mA signal control
  • Characteristic:Linear, Equal percentage
  • Voltage:Depond on accessories
  • Other:
  • Pneumatic sanitary control valve description

    Pneumatic sanitary control valve apply for high sanitary technics process of strictly control flow and pressure. And use filing system of measurement, mixture and metage. Pneumatic sanitary control valve is Mainly for dairy, beverage, food, biology, pharmacy and cosmetic, etc.
  • Pneumatic sanitary control valve Specification

    Metal material

    Contact Product Part

    304/316L(1.4404)

    No-contact Product Part

    304/316L(1.4301)

    Provide EN 10204.3.1B certificate

    Sealing Material

    Standard

    PTFE

    Option

    Body, STL

    All Seal material coply with FDA 177.2800

    Temperature

    Working Temperature

    -29°C~150°C(EPDM)

    Sterilization Temperature

    150°C(Max 20Min)

    Pressure

    Working Pressure

    0~5 Bar(standard)

    Accepting High Pressure Requirement

    Control Air Pressure

    5~8 Bar

    Surface Treatment

    Internal Surface

    Ra ≤ 0.6um

    External Surface

    Standblasting

    Connection

    Connection Standard

    Welded End: DIN 11850 series 2

    Welded End: INCH Ripe standard

    Connection: Weld, Thread, Clamp, Flange

  • Pneumatic sanitary control valve structure

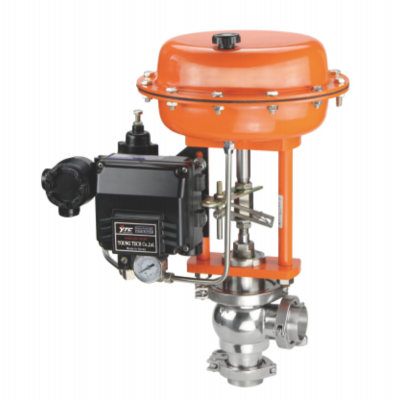

    Pneumatic sanitary control valve

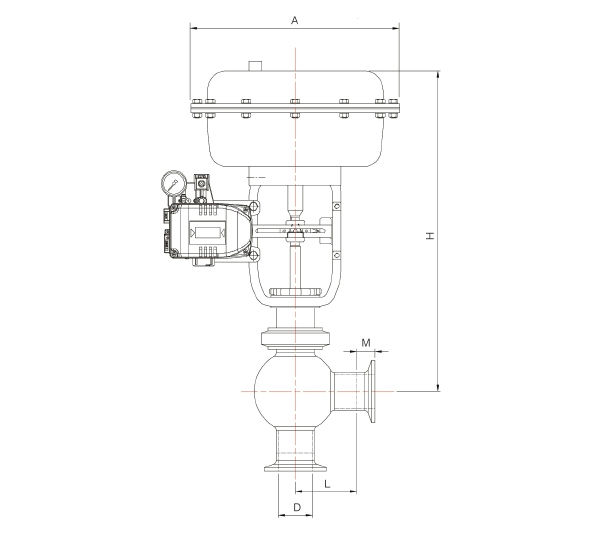

  • Pneumatic sanitary control valve dimension (unit:mm)

    Size



    L

    D

    A

    H

    M

    DIN

    3A

    DIN

    3A

    DN40

    1-1/2”

    65

    41X1.5

    38.1X1.65

    281

    500

    21.5

    12.7

    DN50

    2”

    75

    53X1.5

    50.8X1.65

    281

    500

    21.5

    12.7

    DN65

    2-1/2”

    90

    70X2.0

    63.5X1.65

    363

    630

    28

    12.7

    DN80

    3”

    110

    85X2.0

    76.2X1.65

    363

    635

    28

    12.7

    DN100

    4”

    120

    104X2.0

    101.6X2.11

    520

    890

    28

    15.8
