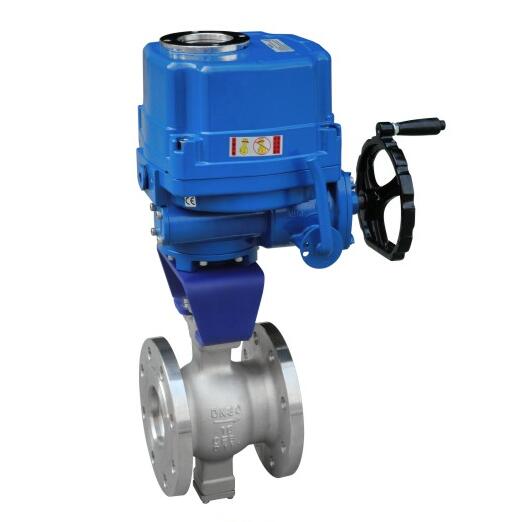

Flange type V port Electric segment ball valve introduction:

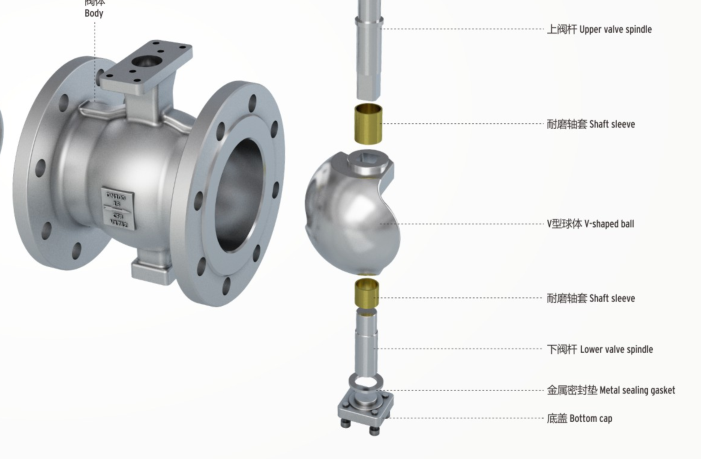

Flange type V port Electric segment ball valve is a kind of ball core for the v-shaped structure of high performance v-type control valve, its v-shaped opening can form a variety of different v-shaped Angle with the valve seat channel, to achieve the pipeline medium parameters of accurate proportional adjustment.When the Flange type V port Electric segment ball valve is closed, the v-shaped incision can easily cut off various pulp or fiber and other viscous media in the pipeline, effectively ensure the flow of the pipeline, and prevent the ball core of the ball valve stuck.The Flange type V port Electric segment ball valve regulation flow rate has approximately equal percentage or linear flow characteristics, the v-mouth Angle can be customized to meet more accurate truncation characteristics and control functions.



Flange type V port Electric segment ball valve advantage:
1. The v-notch ball core and metal seat of Flange type V port Electric segment ball valve have excellent shearing function, especially suitable for automatic adjustment and cutting control in industrial pipelines containing fibrous fluid, tiny solid particles, slurry fluid and other media.
2. Flange type V port Electric segment ball valve can be adjusted in a wide range, with approximately equal percentage or linear flow characteristics, but also has a reliable positioning ability.
3. The characteristic v-type spool structure of Flange type V port Electric segment ball valve improves the control problem of traditional ball valve, so that the medium flow rate can be controlled more precisely through the opening between v-type spool openings.

Flange type V port Electric segment ball valve Technical parameters :
Nominal size: DN15 ~ DN300(mm)
Nominal pressure: PN16 ~ 100,150LB ~ 600LB
Connection mode: flange connection
Valve body form: 2 Pcs or 3 Pcs valve body
Supply voltage:AC110V, AC220V, AC380V (other customized DC24, etc.)
Power driven:(explosion-proof, with manual device)
Temperature range:soft seal -40℃ ~ 150 ℃;hard seal -40℃ ~ 450℃
Body material: WCB 304, 316, 316L or others
Control mode: switch type (switch off control), control type (4-20ma analog signal)
Suitable medium:water, steam, oil, environmental protection, gas, coal, etc. (high temperature, high pressure, low temperature, corrosive medium)
