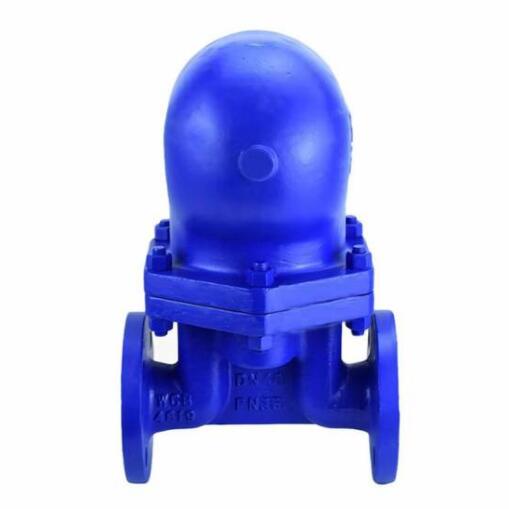

Spirax Sarco FT43H Ball Float Steam Trap Manufacturer, Factory and Supplier. FT43H Mechanical ball float steam trap is Spirax Sarco Design, Spirax Sarco FT43H Ball Float Steam Trap is mainly used for steam system to drain condensate water, Spirax Sarco FT43H Ball Float Steam Trap is a type of ball float steam trap where condensate enters the body via inlet A and ball B gets lifted when the level of water rises. The ball is connected to the outlet valve at point D by use of float arm point C. The outlet valve opens since the condensate lifts the ball. The Spirax Sarco FT43H Ball Float Steam Trap position changes as per the water level in the body which gives continuous discharge of condensate on any load that falls in the maximum capacity of this type of trap. When the condensate load is diminished steam raises to reach the trap, the float drops to its lower position. The valve is fixed against the seat to avoid steam waste. The one main problem associated with this trap is that it cannot discharge via the main valve as it starts.
Spirax Sarco FT43H Ball Float Steam Trap structural characteristic
1.Spirax Sarco FT43H Ball Float Steam Trap adopts two kinds of sealing,e,g,balance double valve seat and single valve seat with reliable closedown and long life.
2.There's always condensate water available in front of the valve with reliable water sealing and non-leakage of steam.
3.No noise before operation in favor of environmental protection.
4.At the beginning of ventilation,all the valves start and lowtemperature condensate water and air are rapidly expelled to greatly shorten the start time for equipment.
5.Internal component is made of stainless steel, corrosion and cavitation erosion proof.
Spirax Sarco FT43H Ball Float Steam Trap specification
Product Name: Spirax Sarco FT43H Ball Float Steam Trap
Pressure Rating: 1.6- 4.0 Mpa.
Nominal Diameter: DN32,DN40,DN50.
Body Material: Steel,WCB.
Standard Flanges: DIN, ANSI, JIS, JB79.
Spirax Sarco FT43H Ball Float Steam Trap dimension
