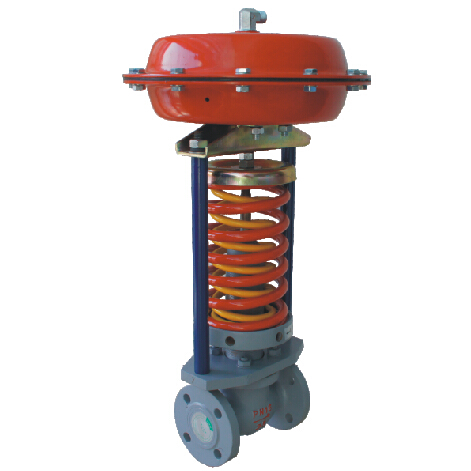

Self-operated regulator control valve

Model：ZZY

Port size：DN20~300, NPS 3/4〞~ 12〞
Pressure：PN16 ~ 100,150LB ~ 600LB
Medium：Water,oil,steam,gas
Temperature :-40～450℃
Body material：WCB LCB CF8 CF3 CF8M CF3M
Connection：Flange：JB79 GB9113 ANSI B16.5
Position type：Quick open
Characteristic：Diaphragm actuator:Pressure≤0.6Mpa
Voltage：No electricity,no air
Other：pressure＞0.6Mpa choose pistion actuator

Self-operated regulator control valve Feature

Self-operated regulator control valve which can adjust the pressure as the set value with it’s medium own energy and without any outer energy.The most advantages of this Self-operated regulator control valve is that it can be suitable for the working place of no power and no pneumatic equipment available, additional,Self-operated regulator control valve can save energy for the end-user, and the pressure is adjustable within the set range.

Self-operated regulator control valve has the following types according to the different working conditions:

ZZYP(single-seat type), ZZYM(sleeve type) and ZZYN(double-seat type), and Self-operated regulator control valve also has three different covers such as common one, long-neck one and cooling type. For different applications, this Self-operated regulator control valve has three different types of actuators:film/piston/bellows.

This Self-operated regulator control valve has other advantages as smart and accurate regulating,taking up small space and simple operation and it’s widely used in the pressure control of gas,steam or water in petroleum, chemical, electric power, metallurgy, food, textile, machinery, civil construction industry.

Self-operated regulator control valve is designed and manufactured according to the standard of AMSE/API/BS/DIN/GB
Self-operated regulator control valve Structure

Self-operated regulator control valve Material

Component name	Control Valve Material
Body/Bonnet	WCB/WCC/WC6/CF8/CF8M/CF3M
Valve spool/Seat	304/316/316L(overlaying stellite alloy)
Packing	Normal:-196～150℃ is PTFE,RTFE,>230℃ is flexible graphite
Gasket	Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
Control valve stem	2Cr13/17-4PH/304/316/316L
Diaphragm Cover	Normal:Q235,Special:304
Diaphragm	NBR with reinforced polyester fabric
Spring	Normal:60Si2Mn,Special:50CrVa

Self-operated regulator control valve technical parameter

Nominal diameter DN(mm)	20	25	32	40	50	65	80	100	125	150	200	250	300
Coefficient(KV)	5	8	12.5	20	32	50	80	125	160	320	450	630	900
Rated stroke(mm)	8		10		12	15	18	20	30	40	45	60	65
Nominal diameter DN(mm)	20
The seat diameter DN(mm)	2	3	4	5	6	7		8	9	10	12	15	20
Coefficient(KV)	0.02	0.08	0.12	0.20	0.32	0.5		0.80	1.20	1.80	2.80	4.0	5
Nominal pressure	MPa		1.6，2.5，4.0，6.4(6.3)/2.0，5.0，11.0
	Bar		16，25，40，64(63)/20，50，110
	Lb		ANSI：Class150、Class300、Class600
pressure range KPa	15～50、40～80、60～100、80～140、120～180、160～220、200～260、 240～300、280～350、330～400、380～450、430～500、480～560、540～620、 600～700、680～800、780～900、880～1000、900～1200、1000～1500、 1200～1600、1300～1800、1500～2100、
Flow characteristic	Quick opening
Adjust the accuracy	±5-10(％)
Working TemperatureT(℃)	-60～350(℃) 350～550(℃)
Leakage	Class IV；Class VI

Self-operated regulator control valve Outline dimension

Nominal diameter DN(mm)			20	25	32	40	50	65	80	100	125	150	200	250	300
B			383		512		603	862		1023	1380		1800	2000	2200
L(Pn16、25、40)			150	160	180	200	230	290	310	350	400	480	600	730	850
L(PN64)			230		260		300	340	380	430	500	550	650	775	900
pressure range KPa	15～140	H	475		520		540	710		780	840		880	940	950
		A	280		308
	120～300	H	455		500		520	690		760	800		870	900	950
		A	230
	280～500	H	450		490		510	680		750	790		860	890	940
		A	176					194		280
	480～1000	H	445		480			670	740	780	780		850	880	930
		A	176					194			280
Weight (Kg) (PN16)			26		37		42	72	90	112	130	169	285	495	675
