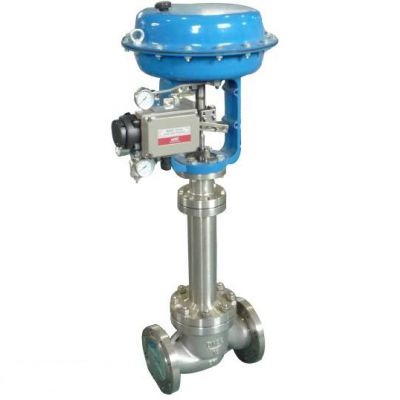

Pneumatic low temperature control valve

Model:

  • Port size:DN15-DN300
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Nitrogen,etc.
  • Temperature :-196~45℃
  • Body material:LCB/LCC/LF2/CF8/CF8M/CF3M,etc.
  • Connection:Flange,Welding
  • Position type:Adjusting according to positioner
  • Characteristic:Extending shaft
  • Voltage:Deponds on accessory
  • Other:Cryogenic treatment
  • Pneumatic low temperature control valve Feature

    Pneumatic low temperature control valve or Pneumatic cryogenic control valve is used for liquefied natural gas,liquefied petroleum gas,liquefied oxygen,liquefied nitrogen,liquefied hydrogen.Extended bonnet design of the cryogenic control valve to ensure reliability of the stem packing & sealing.Pneumatic low temperature control valve temperature rating: -196°C ~+ 45 °C.
  • Pneumatic low temperature control valve Specification

    Pneumatic low temperature control valveBody type: straight through casting globe type
    Spool type: non-balanced single seat plug type
    Nominal size: DN20~200,、 NPS 3/4〞~ 8〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Pneumatic low temperature control valve
    Low temperature extended type(-196℃~ 45℃)

    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Pneumatic low temperature control valve Actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.

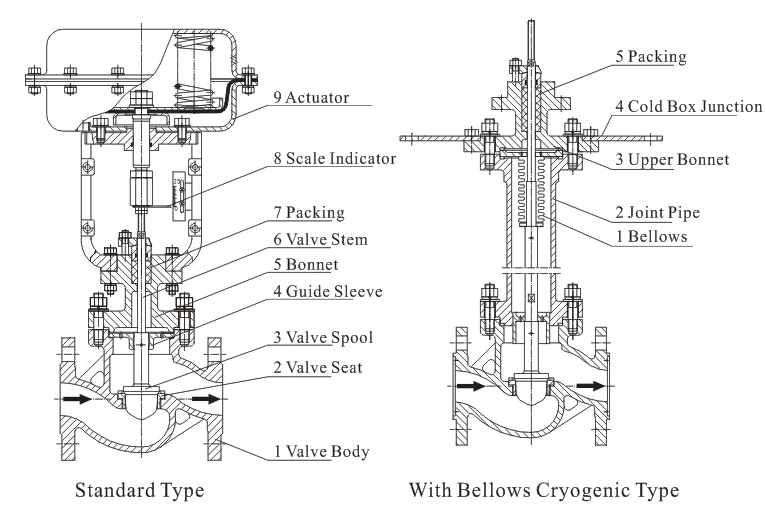

  • Pneumatic low temperature control valve Structure

  • Pneumatic low temperature control valve Material

    Component name Control Valve Material
    Body/Bonnet LCB/LCC/LF2/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • Pneumatic low temperature control valve Lowest working temperature

    Casting Forging
    Materials Lowest working
    temperature
    Materials Lowest working
    temperature
    A352 LCB -46°C A350 LF2 -46°C
    A352 LCC -46°C -46°C
    A352 LC1 -59°C A350 LF5 -59°C
    A352 LC2 -73°C A350 LF9 -73°C
    A352 LC3 -101°C A350 LF3 -101°C
    A351 CF8 -254°C A182 F304 -254°C
    A351 CF8M -254°C A182 F316 -254°C
    A351 CF3 -254°C A182 F304L -254°C
    A351 CF3M -254°C A182 F316L -254°C
  • Pneumatic low temperature control valve Performance

    Pneumatic cryogenic control valve control valve
    Flow characteristic
    Linear, percentage, quick open
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage CV1.6~630 ,linear CV1.8~690
    Pneumatic control valve Allowable leakage Metal seal:  IV grade(0.01% rated capacity)
    Soft seal:  VI grade(foam grade)
    Leakage standard:  GB/T 4213
    Pneumatic low temperature control valve Performance
    Intrinsic error % ±1.5
    Return difference, % ≤1.5
    Dead zone, % ≤0.6
    Difference from beginning to end point, % ±2.5
    Rated travel difference, % ≤2.5
  • Pneumatic low temperature control valve actuator parameter

    Control Valve Type\ Method Pneumatic diaphragm actuator
    ZH23~ZH56
    Multi-spring type
    Usage Regulating type, ON-OFF type
    Air supply pressure or Power supply voltage Air supply pressure (Spring range)
    140(20~100)Kpa G
    240 (40~200) Kpa G
    280 (80~240) Kpa G
    Connector Air pipe connector: RC1/4
    Direct action Pressure increase, stem descend, valve close.
    Reaction Pressure increase, stem ascend, valve open.
    Input signal 40~20mA.DC(with positioner)
    Lag ≤1%FS(with positioner)
    Linear type 2%FS(with positioner)
    Environmental temperature -10℃~+70℃
    Pneumatic control valve
    Accessories
    E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, limited switch
    Non-standard accessories, need special customized notes.
  • Pneumatic low temperature control valve technical parameter

    Seat diameter(mm) 10 12 15 20 25 32 40 50 65 80 100 125 150 200
    Rated Cv Percentage 1.6 2.5 4.0 6.3 10 16 25 40 63 100 160 250 400 630
    Linear 1.8 2.8 4.4 6.9 11 17.6 27.5 44 69 110 176 275 440 690
    Nom. size Travel Option flow characteristic Cv. (★standard  ●recommanded  ○customized)
    DN20 16mm
    DN25
    DN32 25 mm
    DN40
    DN50
    DN65 40mm
    DN80
    DN100
    DN125 60mm
    DN150
    DN200
    Pneumatic actuator
    Diaphragm area, Ae(cm2)
    ZHA/B-22 ZHA/B-23 ZHA/B-34 ZHA/B-45
    350 350 560 900
    Action Spring range Pneumatic low temperature control valve
    Metal sealing allowable pressure difference (MPa)
    Air open 20-100KPa 4.46 3.09 1.98 1.16 0.7 0.44 0.28 0.18 0.17 0.11 0.07 0.07 0.05 0.03
    40-200 KPa 6.4 6.4 5.94 3.34 2.14 1.31 0.84 0.53 0.51 0.33 0.21 0.22 0.15 0.09
    80-240 KPa 6.4 6.4 6.4 6.4 4.99 3.05 1.95 1.25 1.18 0.78 0.5 0.51 0.36 0.21
    Air close 20-100KPa 6.4 6.19 3.96 2.23 2.14 0.87 0.56 0.35 0.34 0.22 0.14 0.15 0.1 0.06
    40-200 KPa 6.4 6.4 6.4 6.4 6.4 5.86 3.64 2.3 2.21 1.43 0.91 0.95 0.66 0.37
    80-240 KPa 6.4 6.4 6.4 6.4 6.4 6.4 5.04 3.18 3.06 1.98 1.26 1.32 0.92 0.52
