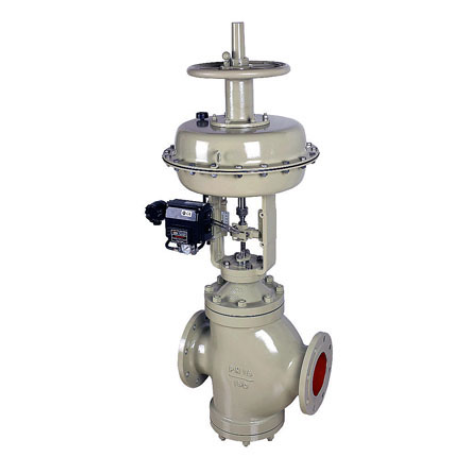

Pneumatic double seat globe control valve

Model:HCB

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-196~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flanged,butt weld is optional
  • Position type:Air pressure increase, valve close or opposite
  • Characteristic:Linear, Equal percentage,quick open
  • Voltage:Depond on accessories
  • Other:Single seat,double seat,sleeve is optional
  • Pneumatic double seat globe control valve Feature

    Pneumatic double seat globe control valve is an excellent choice for applications involving dirty fluids combined with high-pressure drops. Some typical service conditions and operating requirements include:

    - Clean and dirty process fluids

    - Moderate to high pressure drops

    - Large flow capacities and operating range

    - Resistant to process system vibration

    - Low emissions and zero leakage options

    Pneumatic double seat globe control valve combines excellent high-pressure drop control performance along with the ability to handle dirty fluid applications. The dual port design provides a pressure balanced effect within the valve, which reduces actuator size and thrust requirements.

    Dynamic force on plug tends to be balanced as flow tends to open one port and close the other. Reverse-Acting double portedGlobe-Style valve bodies normally have higher capacity than single-ported valves of same line size.

    Many double-ported bodies reverse, so the control valve plug can be install as either push down to open or push down to close.

    Metal to metal seating of double-seated control valve usually provides only Class II shutoff capability, although Class III capability is also possible.

    Port-guided valve plugs of Pneumatic double seat globe control valve are often used for on-off or low-pressure throttling service. Top and bottom guided valve plugs furnish stable operation for severe service conditions.

    Pneumatic double seat globe control valve Design Feature

    ·  Strong flow capacity

    ·  Fluid mechanics design idea

    ·  Various trim structure

    ·  Large guiding area for stable movement

    ·  Wide adjustable range and high adjusting precise

    ·  Floating seat with well sealing capability

    ·  Modularized integral structure design for easy inter-changeable

    ·  Apply to control various fluid mediums

  • Pneumatic double seat globe control valve specification

    Pneumatic control valve
    Body type:
    straight through casting globe type
    Spool type: balanced double seated  type
    Nominal size: DN20~200,、 NPS 3/4〞~ 8〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Pneumatic double seat globe control valve Bonnet type: Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.
  • Pneumatic double seat globe control valve material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • Pneumatic double seat globe control valve performance

    Pneumatic double seat globe  control valve  Flow characteristic Linear, percentage, quick open
    Allowable range 50: 1
    Rated Cv value Percentage CV10~1400 ,linear CV11~1500
    Pneumatic double seat globe control valve
    Allowable leakage
    Metal seal:Ⅱgrade(0.5% rated capacity)
    Soft seal: V grade
    Leakage standard:  GB/T 4213
    Pneumatic double seat globe control valve Performance
    Intrinsic error (%) ±1.0
    Return difference(%) ≤1.0
    Dead zone(%) ≤1.0
    Difference from beginning to end point(%) ±2.5
    Rated travel difference(%) ≤2.5
  • Pneumatic double seat globe control valve special requirement

    Special test Material penetration flaw detection (PT), radiator test (RT), flow characteristic test,
    low temperature test.
    Special treatment Trim nitrogen treatment, seat hard alloy treatment.
    Special rinse Degreasing and dehydration treatment
    Special condition Special piping or connection, vacuum condition, S.S fastener, special coating.
    Special dimension Customized face to face length or dimension
    Test and inspection Third party test report
  • Pneumatic double seat globe control valve actuator parameter

    Pneumatic control valve
    Type\ Method
    Pneumatic diaphragm actuator
    ZH23~ZH56
    Multi-spring type
    Usage Regulating type, ON-OFF type
    Air supply pressure or Power supply voltage Air supply pressure (Spring range)
    140(20~100)Kpa G
    240 (40~200) Kpa G
    280 (80~240) Kpa G
    Connector Air pipe connector: RC1/4
    Direct action Pressure increase, stem descend, valve close.
    Reaction Pressure increase, stem ascend, valve open.
    Input signal 40~20mA.DC(with positioner)
    Lag ≤1%FS(with positioner)
    Linear type 2%FS(with positioner)
    Environmental temperature -10℃~+70℃
    Pneumatic double seat globe control valve
    Accessories
    E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, limited switch
    Non-standard accessories, need special customized notes.
  • Pneumatic double seat globe control valve technical parameter

    Seat diameter(mm) 25 32 40 50 65 80 100 125 150 200 250 300
    Rated Cv Percentage 10 16 25 40 63 100 160 250 400 630 1000 1400
    Linear 11 17.6 27.5 44 69 110 176 275 440 690 1100 1500
    Nominal size Travel Option flow coefficient, Cv(★standard ●recommended ○customized)
    DN25 16 mm
    DN32 25 mm
    DN40
    DN50
    DN65 40mm
    DN80
    DN100
    DN125 60mm
    DN150
    DN200
    DN250 100mm
    DN300
    Pneumatic actuator,Diaphragm effective area, Ae (cm2) ZHA/B-23 ZHA/B-34 ZHA/B-45 ZHA/B-56
    350 560 900 1600
    Action Spring range Pneumatic double seat globe control valve
    Metal seal allowable pressure difference(MPa)
    Air to open 20-100KPa 3 2.25 2.25 1.95 2.36 2.04 1.67 1.41 1.41 1.14 0.65 0.55
    40-200 KPa 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 1.55 1.4
    80-240 KPa 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 4.08 4.08
    Air to close 20-100KPa 1.5 1.13 1.13 0.98 1.18 1.02 0.84 0.71 0.71 0.57 0.65 0.55
    40-200 KPa 4.5 3.38 3.38 2.93 3.54 3.06 2.51 2.12 2.12 1.71 1.8 1.55
    80-240 KPa 6.4 6.4 6.4 6.4 6.4 6.4 5.85 4.94 4.94 4 4.08 3.65
