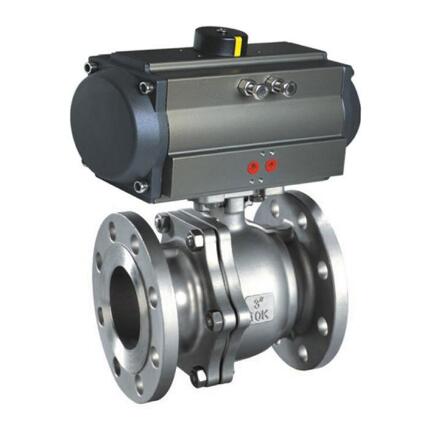

Spring return fail close pneumatic actuated ball valve

Model:

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Position type:Single acting spring return
  • Characteristic:Fail to open or fail to close is optional
  • Voltage:/
  • Other:Different accessories is optional
Spring return fail close pneumatic actuated ball valve introduction:
Spring return fail close pneumatic actuated ball valve is mainly composed of floating ball valve, pneumatic actuator and related accessories. Spring return fail close pneumatic actuated ball valve body adopts the silicon dissolves the tumble precision casting. Spring return fail close pneumatic actuated ball valve has the high platform design. Through the compressed air as the power source, we may control the ball valve to open and close. Spring return fail close pneumatic actuated ball valve overall structure is compact, switch quickly, which is equipped with electrical valve positioner, receive 4-20 mA control signal of industrial automation control system, to complete the adjustment of pipeline medium flow, pressure, temperature and other technical parameters, to achieve automatic control.

Spring return fail close pneumatic actuated ball valve technical specification:
Nominal Diameter DN15-400mm
Nominal Perssure PN1.6MPa;2.5MPa;4.0MPa;6.4MPa
Type of Connection Flange
Driving Type Pneumatic,Manual
Working Temperature Soft seal: -30~+180ºC; metal-to-metal:-40~+450ºC
Body Material Carbon steel(WCB),Stainless steel(CF8,CF83,CF3,CF3M)
Seat Material PTFE,H,Y
Mode of Action Single action(spring return),Double Action(normal open&normal close)
Control Type Adjust type; On-off type
Accessory Solenoid valve, positioner, limit switch,
manual mechanism
Application range Water, oil, gas, corrosive media, etc
Features It has ompact structure, large flux, quick switching, and wide application range.

Spring return fail close pneumatic actuated ball valve Pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time

Spring return fail close pneumatic actuated ball valve accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer

Spring return fail close pneumatic actuated ball valve
