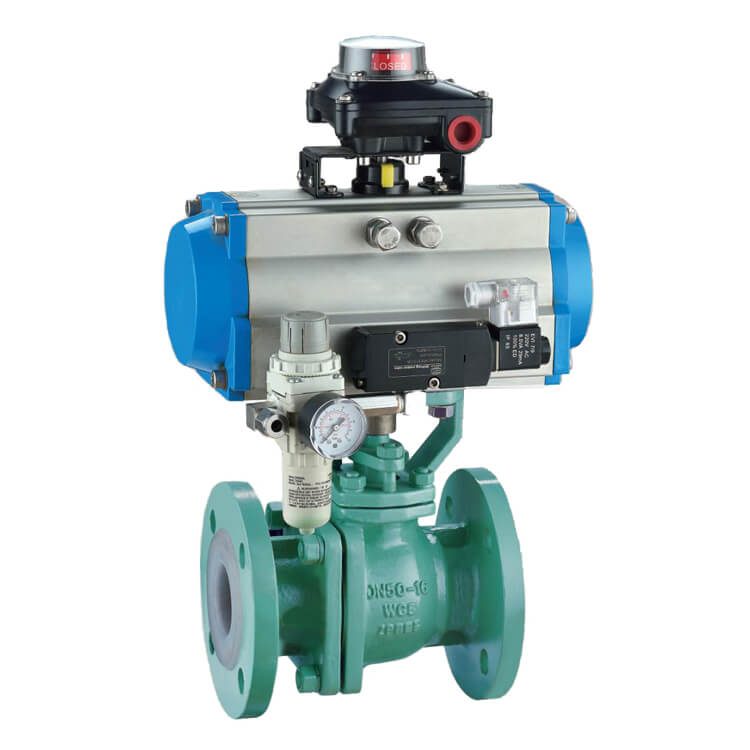

PTFE PFA Lined Pneumatic ball valve

Model:

  • Port size:DN20~200, NPS 3/4〞~ 8〞
  • Pressure:PN10 ~ PN16、 CLASS 150LB
  • Medium:Corrosive medium
  • Temperature :-20~150℃
  • Body material:WCB+PFA/PTFE,304+PFA/PTFE
  • Connection:Flange
  • Position type:single-acting(FO,FC),double-acting (FL)
  • Characteristic:PTFE PFA Lined
  • Voltage:Depond on accessories
  • Other:
  • PTFE PFA Lined Pneumatic ball valve Featue

    PTFE PFA Lined Pneumatic ball valve is a high-speed shut-off valve with right angle rotation. PTFE PFA Lined Pneumatic ball valve has the advantages of good sealing performance, sensitive action, straight-way fluid passage and large circulation capacity.The inner wall of the PTFE PFA Lined Pneumatic ball valve and the trim in contact with the fluid are all lined with corrosion resistant materials by high temperature molding lining fluoroplastic process,such as F46,PTFE, PFA,etc.PTFE PFA Lined Pneumatic ball valve can completely cut off the contact between the corrosive medium and the valve body.PTFE PFA Lined Pneumatic ball valve is widely used in the control of strong corrosive medium such as acid and alkali,toxic,volatile and easily permeable gas and liquid medium.

  • PTFE PFA Lined Pneumatic ball valve Performance

    1. Strong corrosion resistance: It can withstand almost all corrosive medium (including concentrated nitric acid and aqua regia);
    2. Large circulation capacity and media flow direction is unlimited;
    3. Good sealing performance and small leakage: because the sealing seat is made of PTFE, it has reliable sealing and self-lubricating, and low leakage;
    4. PTFE PFA Lined Pneumatic ball valve is suitable for high viscosity medium and the medium with fibrous and suspended soft particles, besides suitable for normal gas and liquid;
    5. Simple structure and easy maintenance;

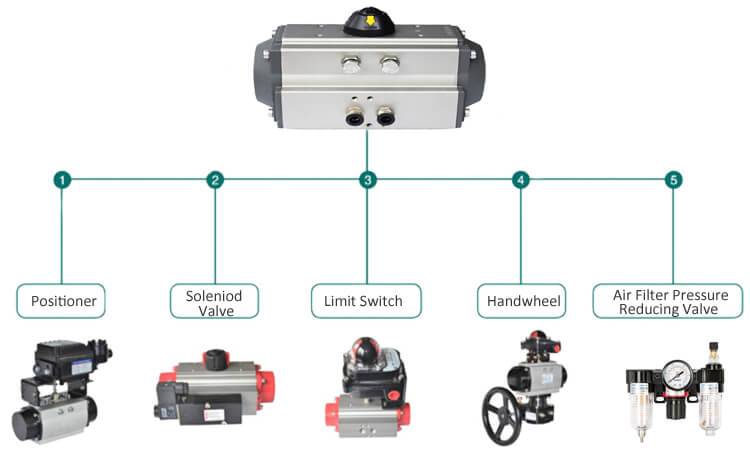

  • PTFE PFA Lined Pneumatic ball valve Pneumatic accessories

    PTFE PFA Lined Pneumatic ball valve Pneumatic accessories
