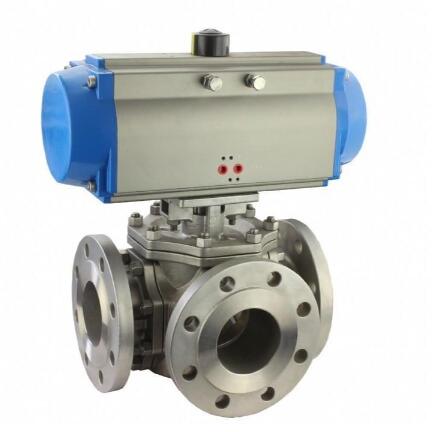

Pneumatic 3 way flange ball valve T port or L port Introduction:
Pneumatic 3 way flange ball valve T port or L port can be T port or L pory design according to the medium flow direction, which is flange connection and thread or welded end is optional. Pneumatic 3 way flange ball valve T port or L port is used for switching, converging and diverging pipeline medium flow direction. Pneumatic 3 way flange ball valve T port or L port is widely applied in metallurgy, mine, petroleum, chemical industry, electric power, light industry, shipping industry and automation control systems, suitable for service conditions such as switching, mixing and diverging of fluid, gas and power.

Pneumatic 3 way flange ball valve T port or L port specification:

Name	Double acting 3 way ball valve pneumatic actuated
1.Size	1/2"-8"
2.Pressure	PN16 ~ 100,150LB ~ 600LB
3.Material	WCB,LCB,304/CF8,316/CF8M,316L/CF3M,A105,etc
4.Temperature	-40～450℃
5.Design Standard	API,JIS,DIN or manufacturing according to your requirements
6.Operation	Pneumatic

Pneumatic 3 way flange ball valve T port or L port Pneumatic actuator information:



Pneumatic 3 way flange ball valve T port or L port accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
