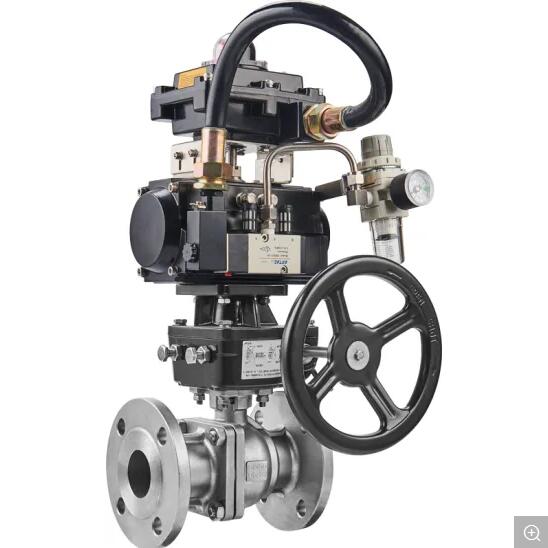

Emergency Shut Down Shut off Pneumatic ball Valve

Model:

  • Port size:1/2'' ~ 24''( 15mm ~ 600mm)
  • Pressure:PN16~42Mpa(150~2500LB)
  • Medium:Water,oil,steam,gas
  • Temperature :-46~450℃
  • Body material:Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
  • Connection:Flange
  • Position type:Single acting spring return
  • Characteristic:Emergency Shut Down
  • Voltage:/
  • Other:Different accessories is optional
Emergency Shut Down Shut off Pneumatic ball Valve introduction:
Emergency Shut Down Shut off Pneumatic ball Valve designed in accordance with API 6D featuring 2 pc or 3 pc split body, side entry or top entry design. Emergency Shut Down Shut off Pneumatic ball Valve have wide range of sealing material including PTFE, PEEK, DEVLON, NYLON, etc, Emergency Shut Down Shut off Pneumatic ball Valve can be used in working temperature range -46ºC~ 450ºC. Emergency Shut Down Shut off Pneumatic ball Valve is equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage.

Emergency Shut Down Shut off Pneumatic ball Valve Product Range:
-Valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel

Emergency Shut Down Shut off Pneumatic ball Valve Technical Specifications:
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Emergency Shut Down Shut off Pneumatic ball Valve Design Features:
-Full port or reduce port
- Fire Safe Design
- Trunnion Mounted Ball or floating ball
-Double block & bleed is optional
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
- Anti-Static Device
-Optional double piston design

Emergency Shut Down Shut off Pneumatic ball Valve Size and Dimensions:
Class
NPS(inch) 2 2-1/2 3 4 6 8 10 12 14 16 18 20 24
DN(mm) 50 65 80 100 150 200 250 300 350 400 450 500 600
150LB L 178 191 203 229 394 457 533 610 686 762 864 914 1067
H 107 125 152 178 315 337 385 414 447 545 513 553 663
W 400 400 400 400 500 500 500 700 700 700 700 700 700
300LB L 216 241 283 305 403 502 568 648 762 838 914 991 1143
H 107 125 152 178 315 329 387 433 440 503 515 588 674
W 400 400 400 400 500 700 700 700 700 700 700 700 700
600LB L 292 330 356 432 559 660 787 838 889 991 1092 1194 1397
H 107 125 152 178 306 366 385 438 454 472 573 598 759
W 400 400 400 400 700 700 700 700 700 700 700 700 1400
900LB L 368 419 381 457 610 737 838 965 1029 1130 1219 1321 1549
H 123 136 185 225 325 355 450 520 450 549 590 710 795
W 400 400 400 400 700 700 700 700 700 700 700 1400 1400
1500LB L 368 419 470 546 705 832 991 1130 1257 1384 1537 1664 2043
H 154 169 187 217 328 410 467 567 560 614 750 835 1029
W 400 400 600 600 700 700 700 700 700 700 1400 1400 1400
2500LB L 451 508 578 673 914 1022 1270 1422 1540 1567 1825 1875 2257
H 174 198 224 268 371 420 540 638 663 764 847 867 1060
W 700 700 700 700 700 700 700 700 700 700 1400 1400 1400
