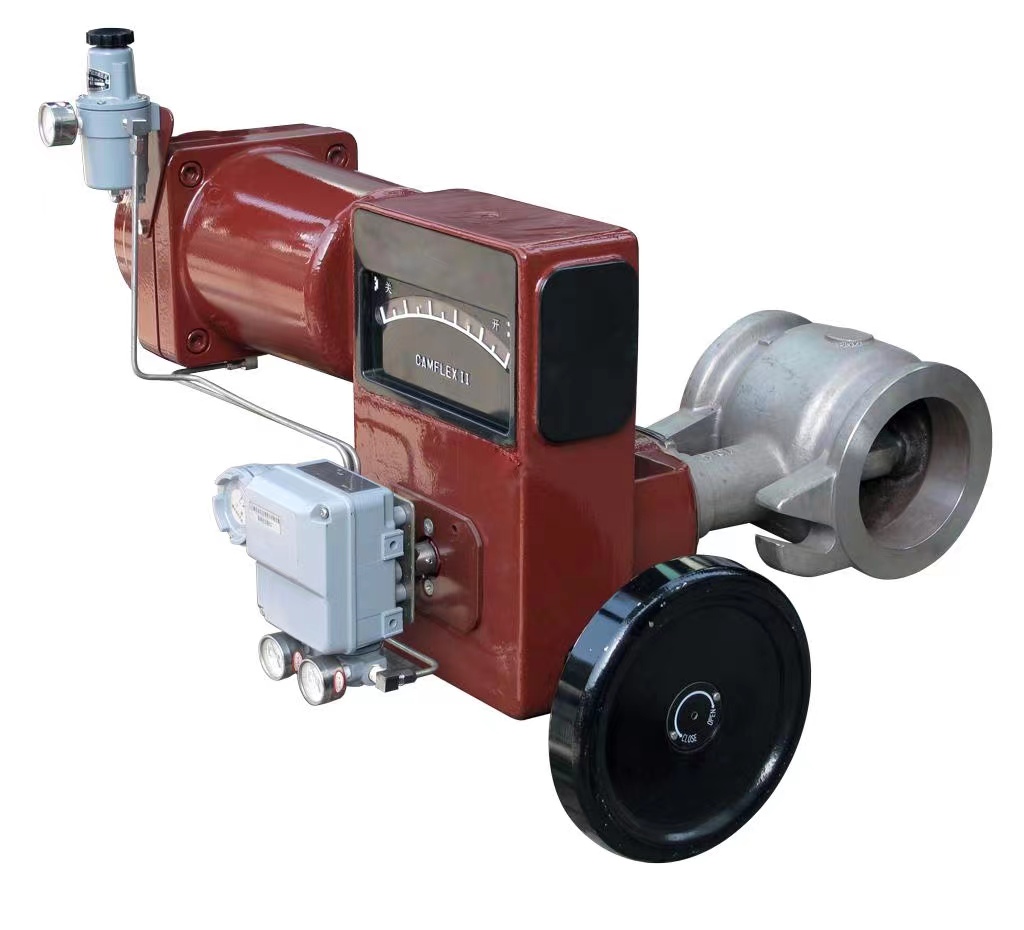

35002 Series Camflex II Rotary Control Valve feature
The Camflex II valve is a heavy-duty, automatic-throttling control valve that incorporates the following features:
• The flangeless body rating is a rugged ANSI Class 600.
• Heavy-duty guide lugs assure quick, positive alignment during installation.
• The flanged version is available at 1 in. through 12 in. (25 mm through 300 mm) in 150 or 300 ANSI, and 1 in. through 8 in. (25 mm through 200 mm) in600 ANSI.
• Separable bonnet design is available.
• Straight through flow pattern provides greater flow capacities.
• Standard integral extension bonnet allows for a wide range of fluid temperature applications (-320˚F to 750˚F), (-196˚C to 400˚C).
• The unique self-aligning eccentric rotating plug provides tight shutoff and low dynamic forces.
• A large variety of reduced-trim options are available in all sizes.
• The triple, over-sized bearing system provides exceptional plug shaft guiding.
• The shouldered shaft design is utilized.
• An optional patented differential velocity device (DVD) separates compressible flowstreams into a high velocity core and a low velocity envelope flowstream. This provides up to 18 dBA noise attenuation.
• Optional alloy constructions are available.
• The powerful, low-profile, spring-diaphragm actuator guarantees positive fail-safe action.
• Splined shaft and actuator linkages, combined with lowfriction techniques, contribute to reduced deadband and hysteresis.
• The valve position indicator is large and highly visible.
• The actuator linkage (purge option available) is totally enclosed)
