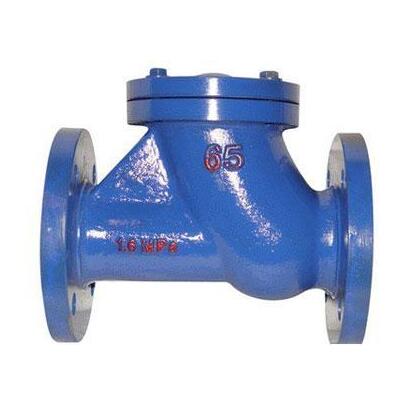

HQ41X Ball Type Check Valve

VALVE

contact us

SHANGHAI HUIXUAN VALVE

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：HQ41X

Port size：DN50-DN600
Pressure：PN10-PN40 150LB
Medium：water,oil,etc
Temperature :-29～80℃
Body material：Cast iron,ductile iron, carbon steel, stainless steel
Connection：Flange
Position type：
Characteristic：Float ball type check valve
Voltage：
Other：HQ41X Check vave manufactuer and supplier

HQ41X Ball Type check valve manufacturer, factory and supplier. HQ41X Ball Type check valve is popularly used in water supply and drainage pipeline. HQ41X Ball Type check valve is installed at the outlet of the pump and functions to cut off backflow protection pump from reverse movement and safeguard the pipeline system. HQ41X Ball check valve can eliminate pressure surge. It is the ideal non-return vavle.

HQ41X Ball Type check valve Specification:

Medium applicable	Water, Oil etc.
Main material	Cast iron, Ductile ironI, WCB, WCC, SS304, SS316, CF8 etc
Temperature applicable	≤80ºC
Nominal Pressure	PN1.0--4.0Mpa or Class150
Nominal Diameter	1/2"- 40"
Flange Dimension	ASME B16.5, BS4504, ISO2531, ISO7005 and other standards conforming to the requirements
Face to Face Length	API594, BS5155, ISO5752, DIN
